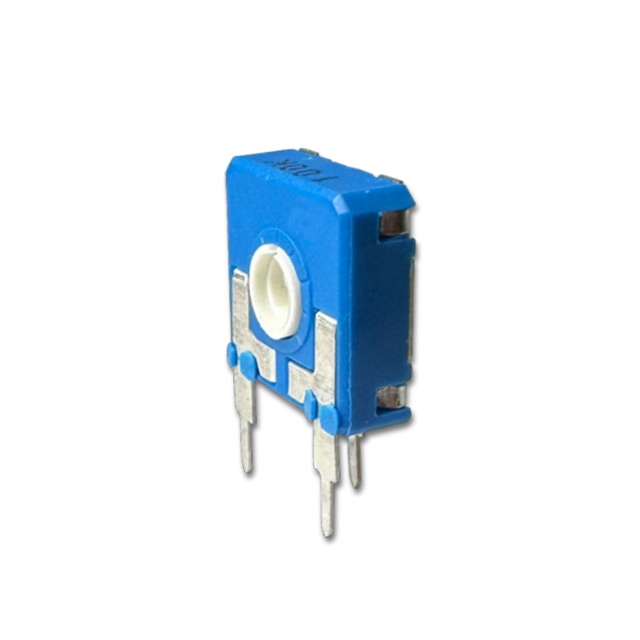

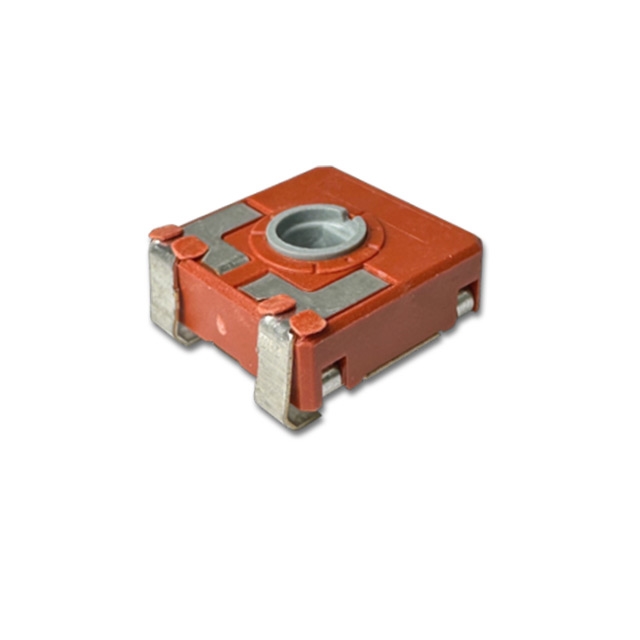

14mm Trimmer Potentiometer

14mm carbon potentiometers with plastic housing. Plastic materials can be self-extinguishable according to UL 94 V-0 upon request. This product is ideal for dimmers, volume/lighting regulation, timers and relays in industrial, electronics and automotive applications.

  • Terminals: tinned brass or tinned steel
  • Flexible gull-wing / through hole / “J” bend terminal configurations
  • Various rotor types and with optional shaft & Wheel configurations
  • IP54 according to IEC 60529

  • Dimmers
  • Volume control
  • Lighting regulation
  • Timers and relays
  • Industrial, electronics and automotive
Specifications
Element TypeCarbon Composition
Package (mm)14x14
Power (W)0.25
Rotational Life (Cycles)1000
Resistance (Ω)100 / 200 / 5M
Terminal TypeGull Wing / J-bend / Through-hole
