206

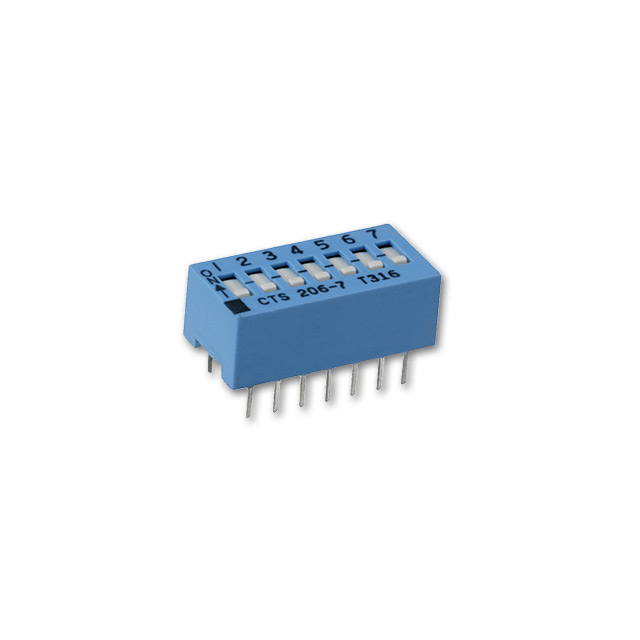

Through-Hole DIP Switch
The terminals are molded into the thermoset base and provide an electrostatic discharge shield rating to 22KV when front row of terminals are connected to ground. The optimized contact design incorporating a dimple-toflat surface wiping interface for long-term contact corrosion resistance, making it the ideal choice for any circuit breaker and HVAC applications.
Series Resources
Features
- Available with SPST, SPDT, DPST, 3PST circuit choices
- Available with low profile, standard, or extended actuator heights. Consult the ordering information for options.
- Blue housing
- RoHS compliant
- Optional top tape seal for board spray washing
- Gold plated contacts
| Specifications | |
|---|---|
| Actuator Type | Slide |
| Mount | Through-Hole |
| Circuit | 3PST / DPST / SPDT / SPST |
| Positions | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Terminals | Straight |
| Contacts | Gold |
