6022

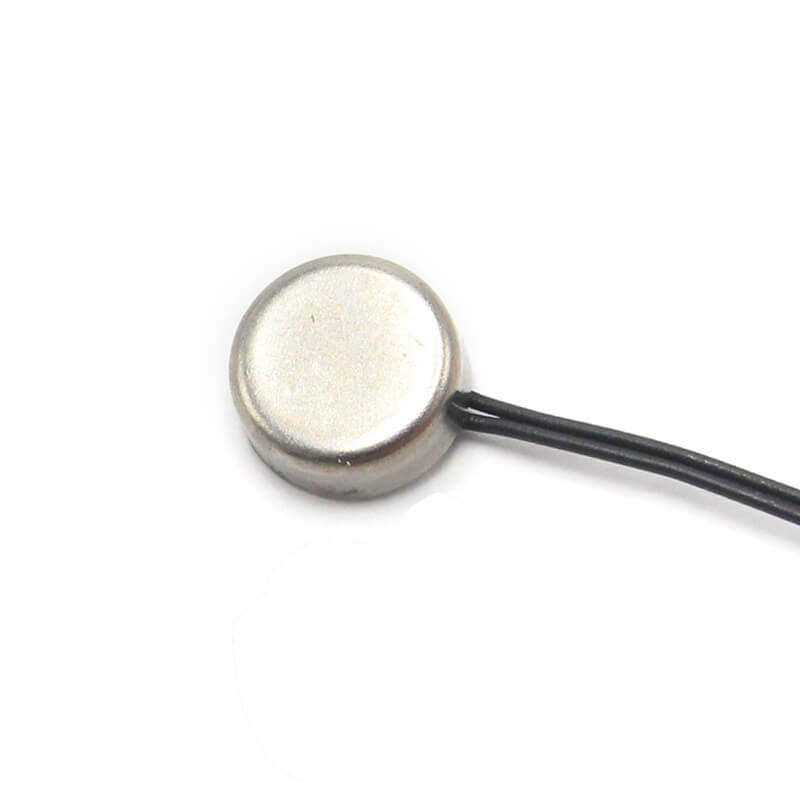

Flat disc surface temperature sensor

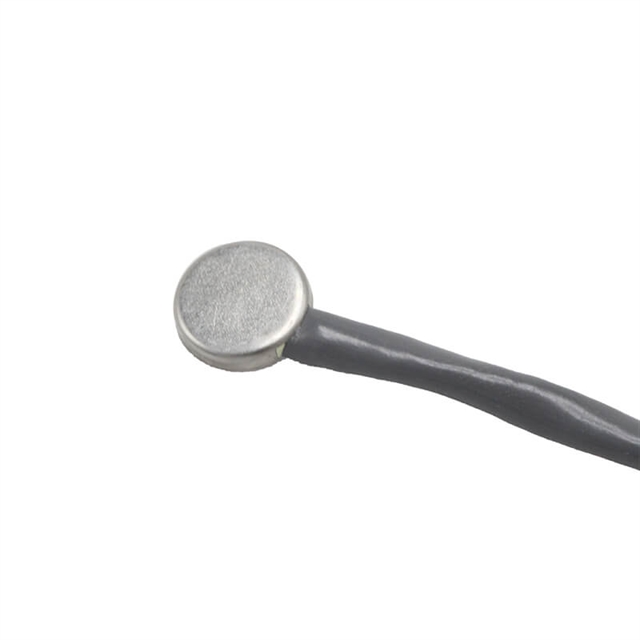

CTS’s 6022 Series of temperature sensors are a versatile and cost effective surface temperature sensing solution. This surface temperature sensor is ideal for applications in the medical industry for continuous skin temperature measurement in situations that require repeatability, high sensitivity and rapid response. These sensors are able to be reused upon sterilization/autoclaving. CTS can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length and color are all able to be specified.
Series Resources
Features
- NTC thermistor assembly
- Multi-purpose surface sensor
- Housing material options: stainless steel, copper, aluminum
- Standard sizes: 0.33 inches and 0.21 inches
- Typical wire size: #24 to #28 AWG
- Can be overmolded
Fast time response when mounted to flat surface
| Specifications | |
|---|---|
| Sensor Type | Platinum RTD Thermistor |
| Sensor Mount | Adhesive |
| Material | Stainless steel |
| Temperature Range | -40°–125° |
| Beta Value | 3977, 3435, 3690, 4260, Custom |
| Resistance | 10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000 |
| Tolerance | 0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom |
