TT-0

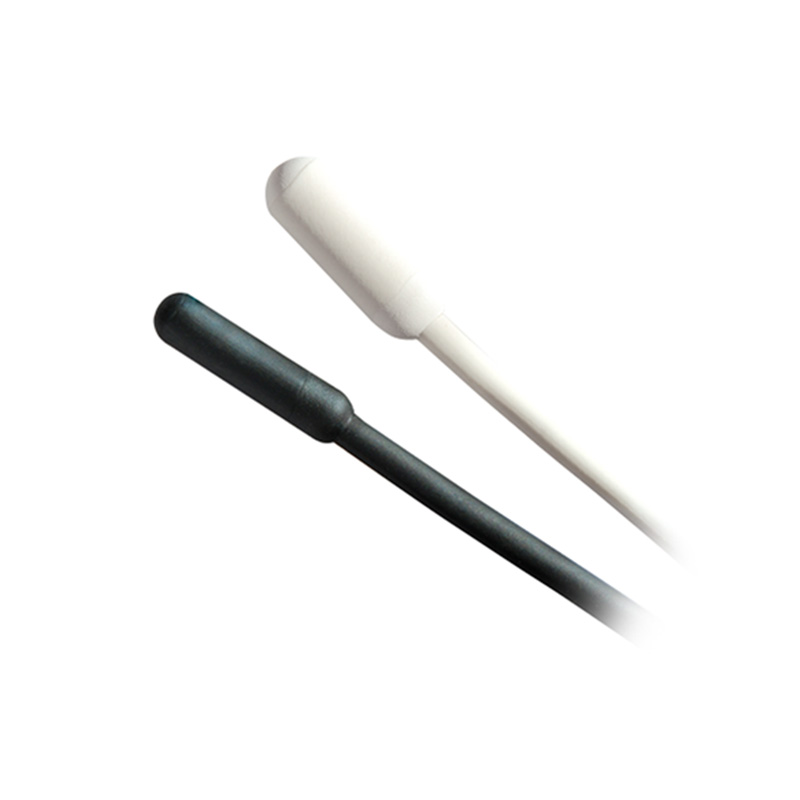

Overmoulded Temperature Sensors
TTO series sensors are IP68 waterproof temperature probes encapsulated with thermoplastic elastomer materials in overmoulding technology. Excellent performance in extreme freeze-thaw conditions resulting from a wide choice of insulation material. The TTO overmoulded probes are a perfect solution for applications where the best waterproof and moisture protection is required. The probe is available in a wide range of standardized sizes and tolerances with a single, double or triple reinforced insulation. NTC, PTC, PtRTD versions are available.
Series Resources
Features
- Excellent insulation against moisture
- Degree of waterproof protection IP68
- Flexible size and tolerances (smallest tip diameter 4.5mm)
- Excellent resistance to UV (black insulation)
- ROHS compliant and Halogen Free
- Wide range of R/T characteristics
- Marking possible on request
- NTC and PTC thermistors, PtRTD versions are available
- Cable remains flexible at minimum design temperature
Applications
- Refrigeration applications (evaporator)
- Air Conditioning
- Underfloor heating
- Climat control systems
- Industral Process control
- Others
| Temperature Range | -50°C to 105°C (continuous), version up to 150°C is now available |
| Tight resistance tolerance | ±0.1°C, ±0.2°C, or 1% to 5% |
| Beta(25/85) value: | from 3187K to 4262K |
| Beta tolerance: | from ±0.3% to ±5% |
| Cable: | 0.3mm2 stranded copper, VDE approved |
| Cable length: | from 100mm to 100m (others available) |
| Insulation resistance: | 100MOhm at 1000VDC |
| Dielectric strength: | 3750 V AC |
| Specifications | |
|---|---|
| Sensor Type | Platinum RTD Thermistor |
| Sensor Mount | Clamp, tie |
| Material | TPE overmold housing |
| Temperature Range | -50°–105° |
| Beta Value | 3190, 3977, 3435, 3690, 4280, Custom |
| Resistance | 10000 / 100000 / 2252 / 3000 / 30000 / 5000 / 50000 / Custom / Pt100 / Pt1000 |
| Tolerance | 0.1C (0C to 70C) / 0.2C (0C to 70C) / 1% / 2% / 5% / Custom |
