Heatsinks
CTS has designed and engineered a wide range of efficient heatsinks for electronic devices, circuit, and system thermal management applications. These heatsinks are available in a variety of formats, including extruded, precision forged, and stamped units.
Heatsinks can be supplied in standard horizontal or vertical mounting to circuit boards or other heat sources with a choice of round pin fins or elliptical fins for effective heat dispersion, and in compact clip-mounted BGA formats to “beat the heat” while maintaining small design dimensions. Heatsinks can also be supplied as RoHS-compliant units in a variety of sizes and configurations.
Reach out to us with any questions.
We're happy to help.
- Features
- Applications
- Related Products
- Precision forging technology for high-power applications
- Designed for BGA and other surface mount packages
- Various mounting methods are available
- Select from multiple fin heights
- computers (CPUs, GPUs)
- Lighting Applications
- Power Electronics
- Processor Cooling
- Industrial Equipment
- Thermal Regulation
| Series | Type | Mounting | Semiconductor Type | Ø °C/W |
Datasheet |
|---|---|---|---|---|---|
|
|
Forged | Clip Pre-Applied Adhesive |
BGA, PGA, PLCC, QFP | 1.20-15.45 | |
|
|
Forged | Pre-Applied Adhesive | BGA, PGA, PLCC, QFP | 2.00-18.40 | Datasheet RoHS REACH |

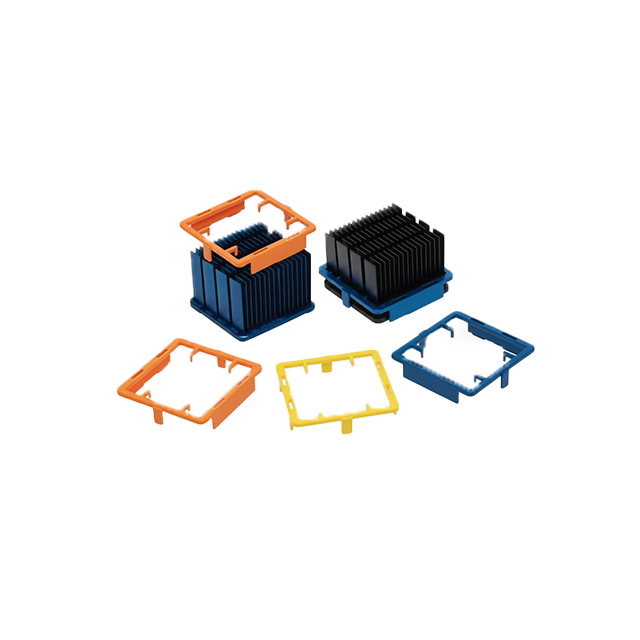

 APR |
Forged | Clip Pre-Applied Adhesive |
BGA, PGA, PLCC, QFP | 1.38-13.17 | Datasheet RoHS REACH |
 BDN |

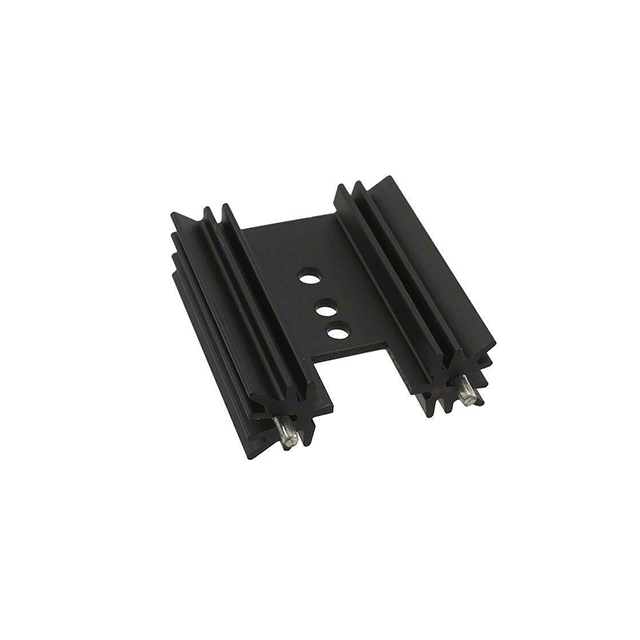

Extruded | Pre-Applied Adhesive | BGA, PGA, PLCC, QFP | 2.60-26.90 | Datasheet RoHS REACH |
 7-338 |

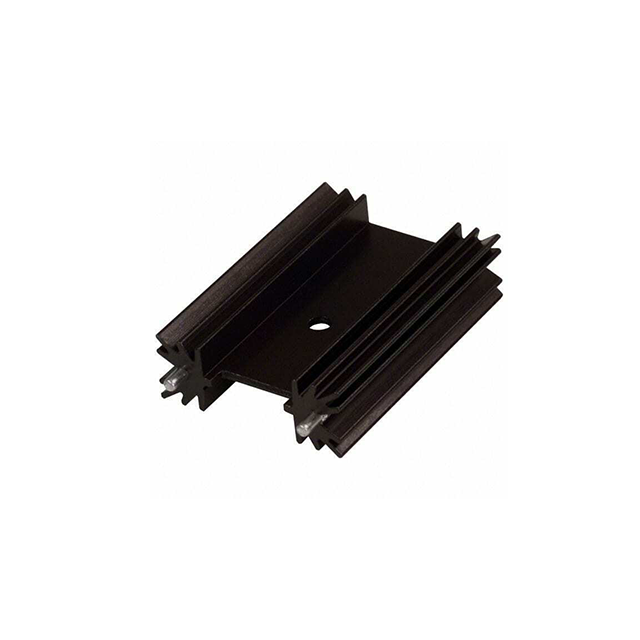

Extruded | Bolt-On, PC Pin | TO-126/202/218/ 220 | 5.70-12.70 | Datasheet RoHS REACH |
 7-339 |
Extruded | Bolt-On, PC Pin | TO-126/202/218/ 220 | 5.70-12.70 | Datasheet RoHS REACH |

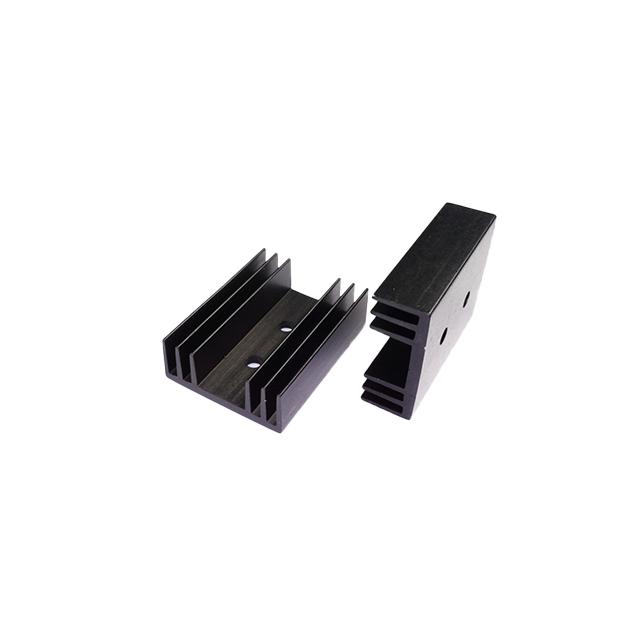

 7-340 |
Stamped | Bolt-On | TO-126/202/218/ 220 | 6.67-15.00 | Datasheet RoHS REACH |
 7-342 |
Extruded | Bolt-On | TO-126/202/218/ 220 | 5.00-6.67 | Datasheet RoHS REACH |
 7-345 |
Extruded | Bolt-On | TO-126/202/218/ 220 | 4.70-9.00 | Datasheet RoHS REACH |

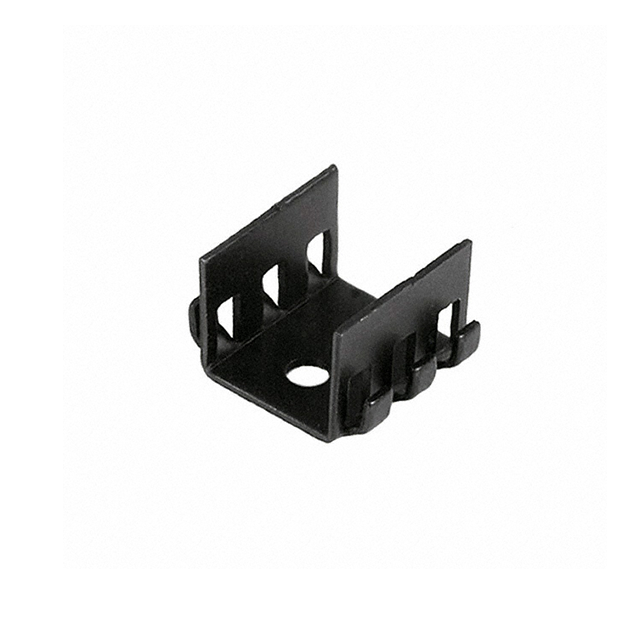

 7-361 |
Stamped | Bolt-On | TO-220 | 30 | Datasheet RoHS REACH |

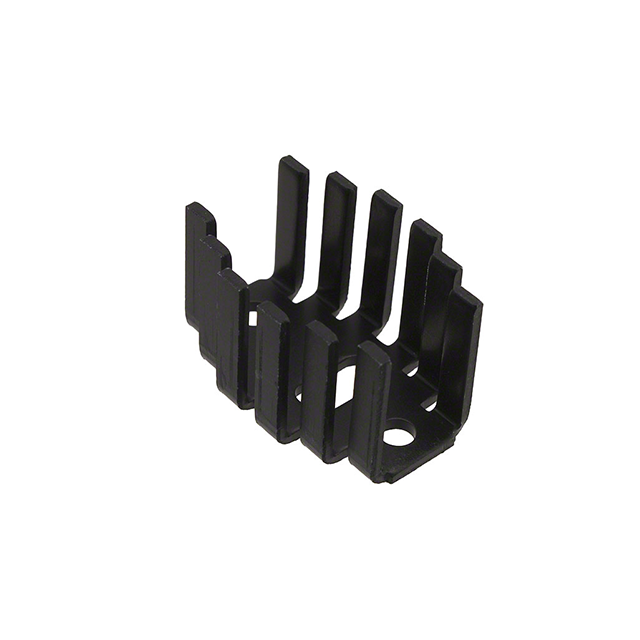

 LAE66A3CB |
Stamped | Bolt-On | TO126/127/220 | 17 | Datasheet RoHS REACH |

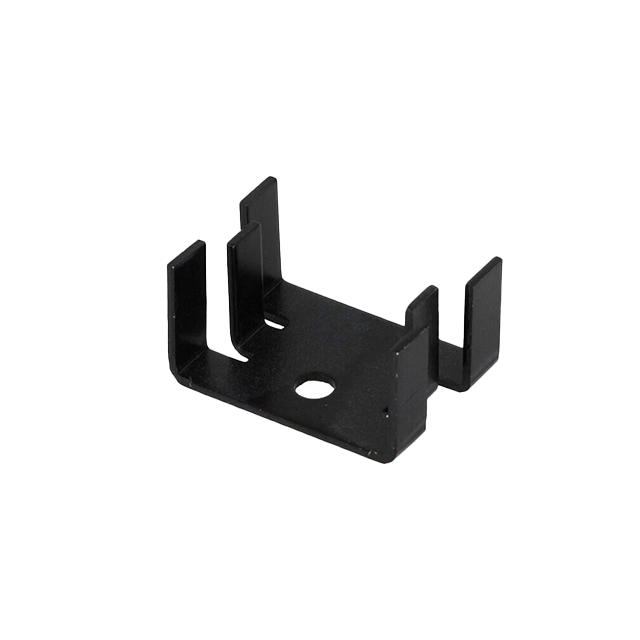

 PA1-1CB |
Stamped | Bolt-On | TO126/127/220 | 28.80 | Datasheet RoHS REACH |
 PB1-36CB |
Stamped | Bolt-On | TO126/127/220 | 20 | Datasheet RoHS REACH |

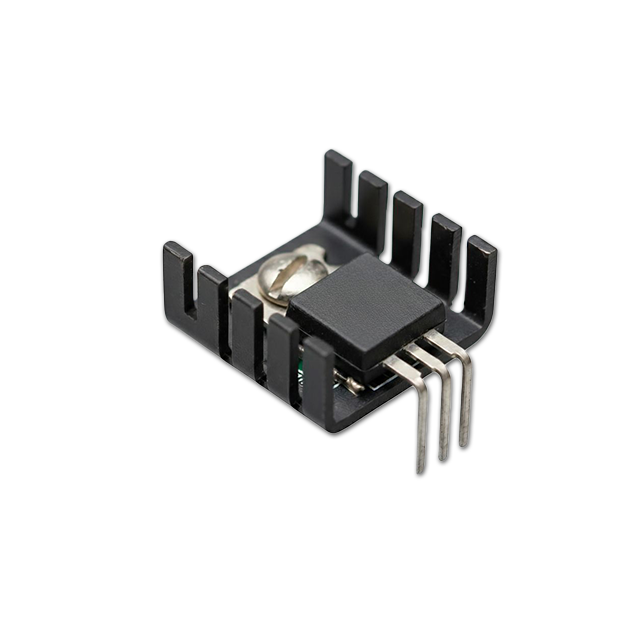

 PC1-1CB |
Stamped | Bolt-On | TO126/127/220 | 27.30 | Datasheet RoHS REACH |

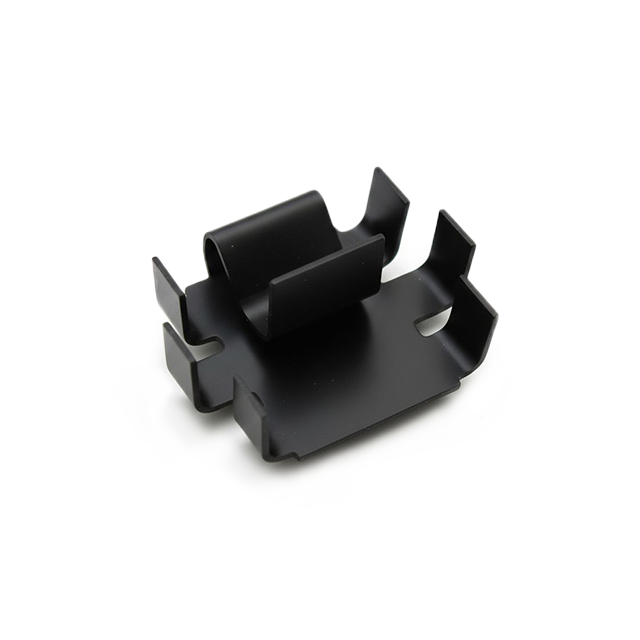

 PSC2-2CB |
Stamped | Clip | TO-220 | 41.70 | Datasheet RoHS REACH |

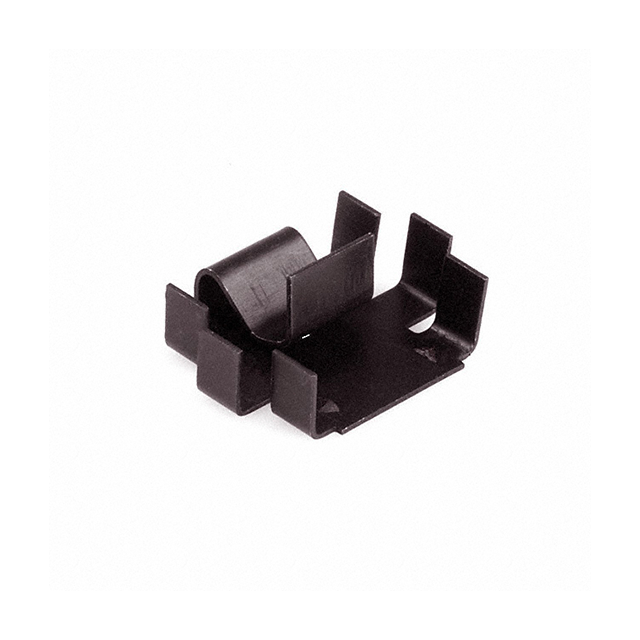

 PSC2T-2CB |
Stamped | Clip | TO-220 | 36.70 | Datasheet RoHS REACH |
 UP1-348-CB |
Stamped | Bolt-On | TO-3 | 10.40 | Datasheet RoHS REACH |
 UP-TO3-CB |
Stamped | Bolt-On | TO-3 | 7.10 | Datasheet RoHS REACH |
