Resistor Networks
CTS resistor networks provide reliable, cost-effective solutions that save space and simplify assembly. Designed for both standard and custom circuit needs, our compact chip resistor arrays deliver high performance in a small footprint. RoHS-compliant and built for wide operating conditions, they offer flexible configurations and high-density packaging, making them ideal for today’s demanding applications—from memory and logic circuits to PCI, FPGA, and high-speed connector interfaces.
Reach out to us with any questions.
We're happy to help.
- Features
- Applications
- Related Products
- Low-cost resistor solutions for standard and custom circuit topologies
- Available in isolated and bussed configurations
- Space-saving design reduces assembly cost with fewer placements than discrete components
- Leadless, surface-mount arrays with low profiles for compact applications (e.g., PCMCIA cards)
- RoHS-compliant thick-film construction
- Resistance values from 10Ω to 1MΩ
- Wide operating temperature range: -55°C to +125°C
- Resistor tolerances from ±0.5% to ±5%
- TCR tracking available to ±100 ppm/°C
- Contact pitch as fine as 0.025 inch
- Package options with up to 48 resistors and 64 contacts
- High density: up to 750 resistors per square inch
- Well-suited for memory and logic circuits, PCI and LVPECL cards, FPGA I/O terminations, and high-density connector/backplane interfaces
-
Digital logic circuits
-
FPGA and ASIC I/O terminations
-
Memory modules (DRAM, SRAM, Flash)
-
PCI, PCIe, and LVPECL cards
-
Connector and backplane interfaces
-
Analog circuits
-
A/D and D/A converters
-
Communication equipment
-
Consumer electronics
-
Industrial and automotive systems
| Series |
SMD/Thru-Hole |
Package Type | Contacts | Circuit Type | Resistor Range | Tolerance (%) |
TCR |
Datasheet |
|---|---|---|---|---|---|---|---|---|
|
|

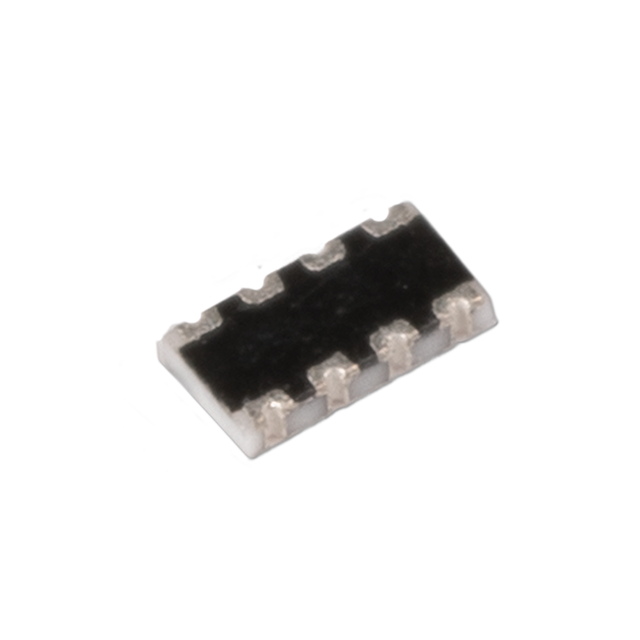

SMD | Leadless Convex/Concave | 4-16 | Isolated or Bussed | 10 - 1M | ±5% ±1% |
±200 | |
 752 |

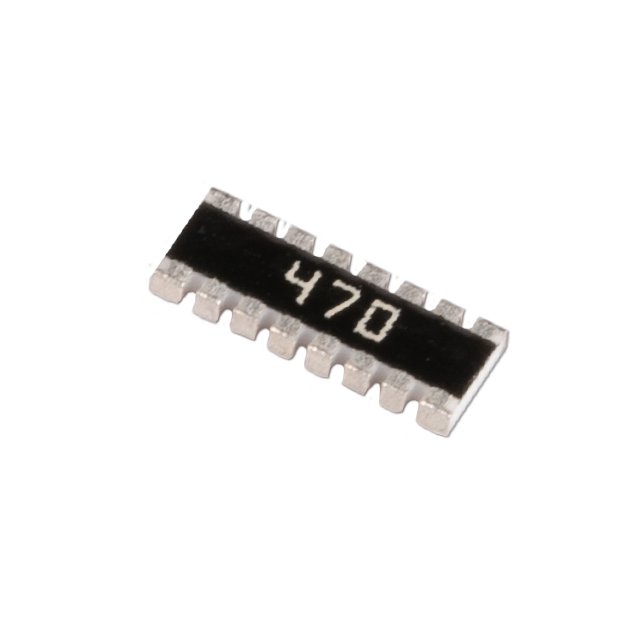

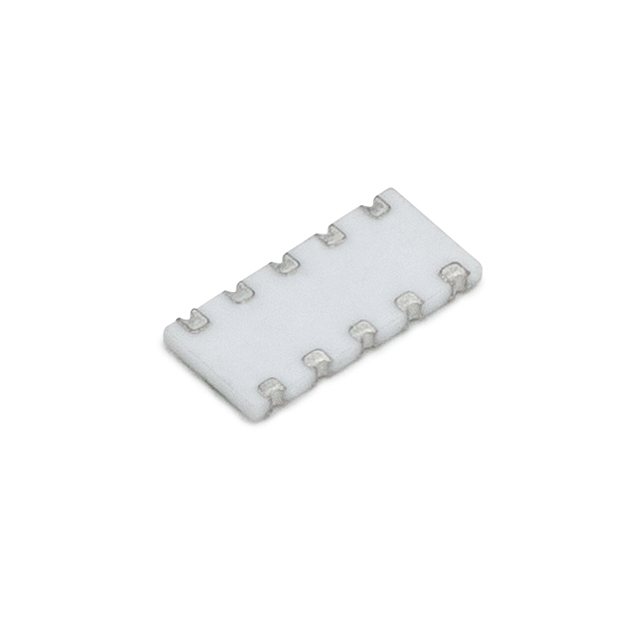

SMD | Leadless Single or Dual Row | 8-24 | Bussed, Isolated, Dual Terminator | 10 - 1M |
±2% |
±200 (±100 Available) |
|
753 |

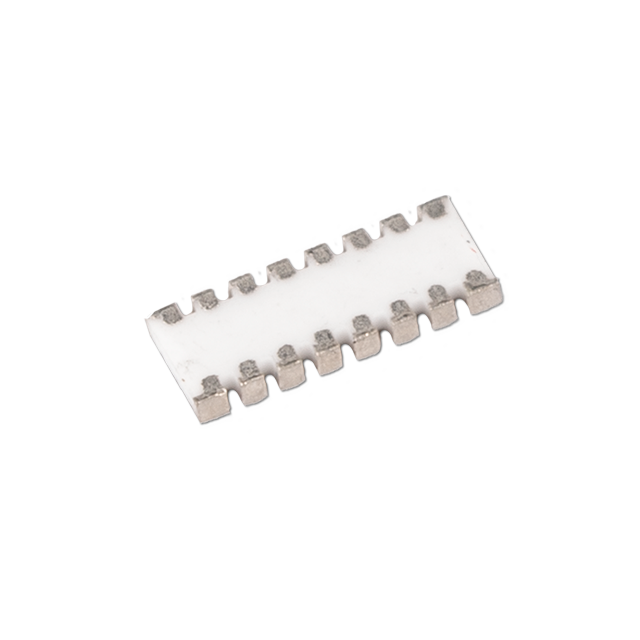

SMD | Leadless Single or Dual Row | 8-24 | Bussed, Isolated, Dual Terminator | 10 - 1M | ±2% ±1% ±0.5% |
±200 | |
|
|

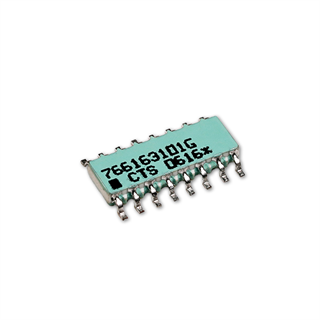

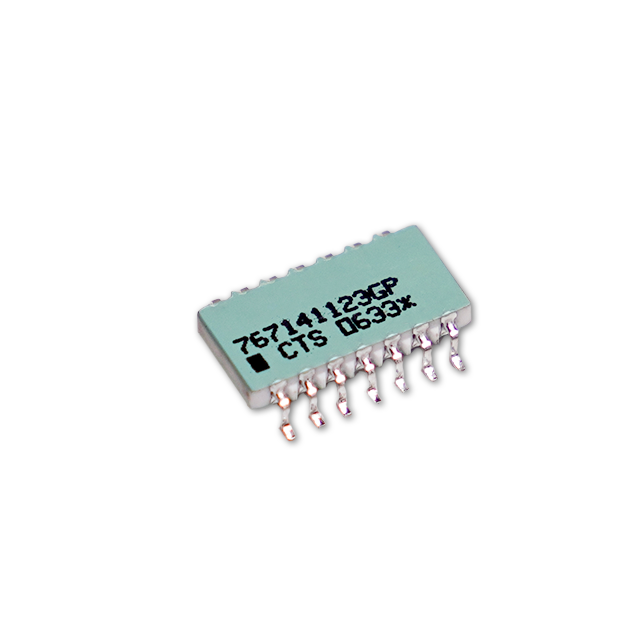

SMD | SOIC Gullwing | 14,16 | Bussed, Isolated, Dual Terminator, R/2R Ladder | 10 - 1M | ±2% ±1% ±0.5% |
±200 |
|
 767 |
SMD | SOIC Gullwing | 14,16 | Bussed, Isolated, Dual Terminator, R/2R Ladder | 10 - 1M | ±2% ±1% ±0.5% |
±200 |
|
 768 |
SMD | SOIC Gullwing | 14,16,20 | Bussed, Isolated, Dual Terminator, R/2R Ladder | 10 - 1M | ±2% ±1% ±0.5% |
±200 |
|
 770 |
Thru-Hole | SIP | 4-26 | Bussed, Isolated, Dual Terminator | 12 - 1M | ±2% | ±100 | |
|
|
SMD | Leadless Convex/Concave | 4-16 | 5.00-6.67 | 10 - 1M | ±5% ±1% |
±100 |
