Digital Temperature Sensor
CTS digital temperature sensors provide accurate, real-time temperature monitoring in a small, intelligent package. Featuring integrated sensing and digital output capabilities, they enable simple system integration while helping improve performance, efficiency, and thermal management.
Reach out to us with any questions.
We're happy to help.
- Features
- Applications
- Technical Resources
- Combines a temperature-sensing element (silicon, RTD, or thermistor-based) with on-chip signal conditioning and ADC
- Provides temperature data via standard digital interfaces (e.g., I²C, SPI, 1‑Wire)
- Delivers accurate, repeatable temperature readings without external calibration
- Digital communication reduces susceptibility to electrical noise vs. analog sensors
- Simplifies system design by reducing component count and software complexity
- In advanced designs, can be used to store measured temperature values or logs if required

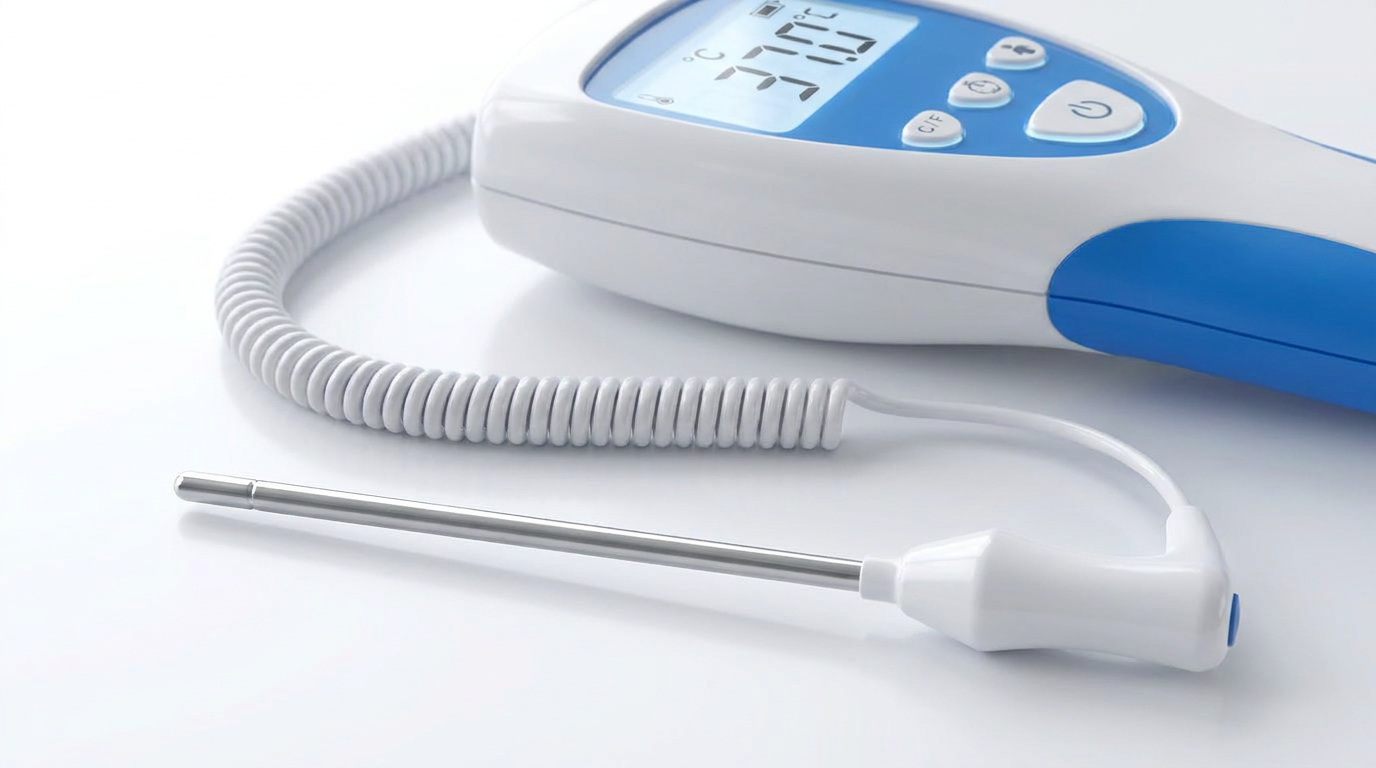

- Medical Body Temperature Monitoring
- Incubators
- Medical Wearables
- Industrial Battery Thermal Management
- Automotive Engine and Cabin Temperature Control
- Industrial Equipment and Automation
- Smart Devices and other Consumer Devices
- Aircraft and Defence Applications
- Power Plants and Energy Production
- HVAC and Building Temperature Monitoring
- Cold Storage and Temperature Sensitive Logistics
Please wait while we gather your results.
Results Updated, 22 Results.
Skip to Filters
Application Notes / Tech Briefs, Brochures / Catalogs
Part Numbers
| Part Number | Data Sheet |
|---|---|
| TT02-TMP118-T105-620-1500 | Download |
| TT4-TMP118-T105-OM32-1500 | Download |
| TT4-TMP118-T125-C650-1500 | Download |
| TT4-TMP118-T125-6.5-1500 | Download |
| TT4-TMP118-T125-OM-55-1500 | Download |
| TT4-TMP118-T125-OM377-1500 | Download |
Operating Characteristics
| Characteristic | Description |
|---|---|
| Sensing element | Original Texas Instruments TMP117 digital temperature sensing chip. |
| Operating range | −55°C to +150°C. |
| Accuracy spec | ±0.1°C max from −20°C to +50°C; ±0.3°C max from −55°C to +150°C. |
| Resolution | 16-bit temperature result with 0.0078°C resolution. |
| Power use | 3.5 µA at 1 Hz conversion cycle; 150 nA shutdown current. |
| Supply range | 1.8 V to 5.5 V. |
| Alert capability | Programmable temperature alert limits. |

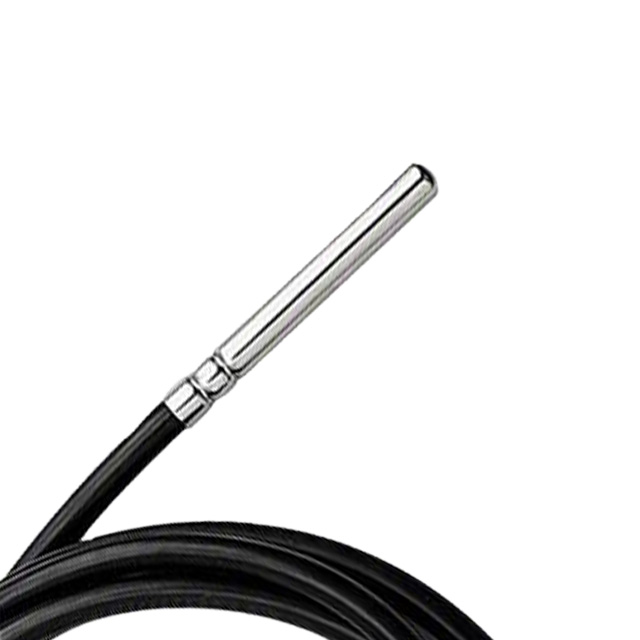

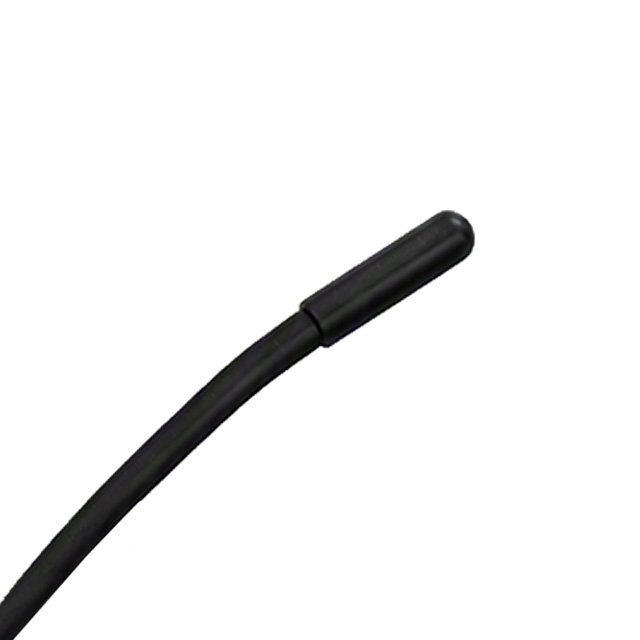

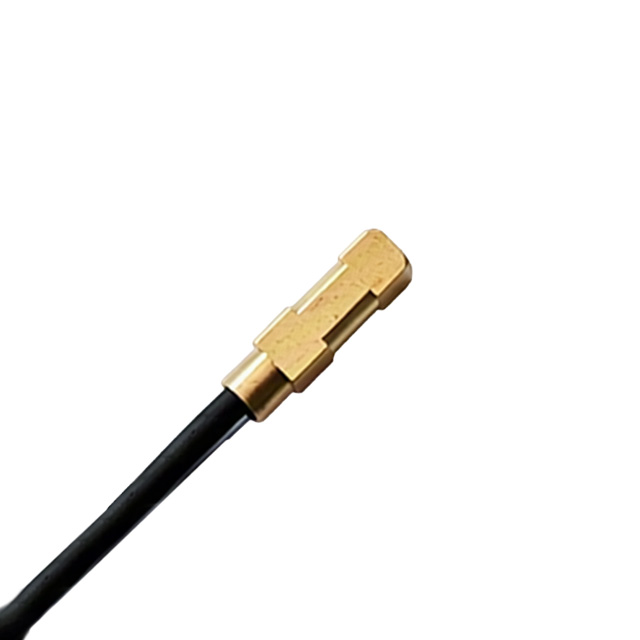

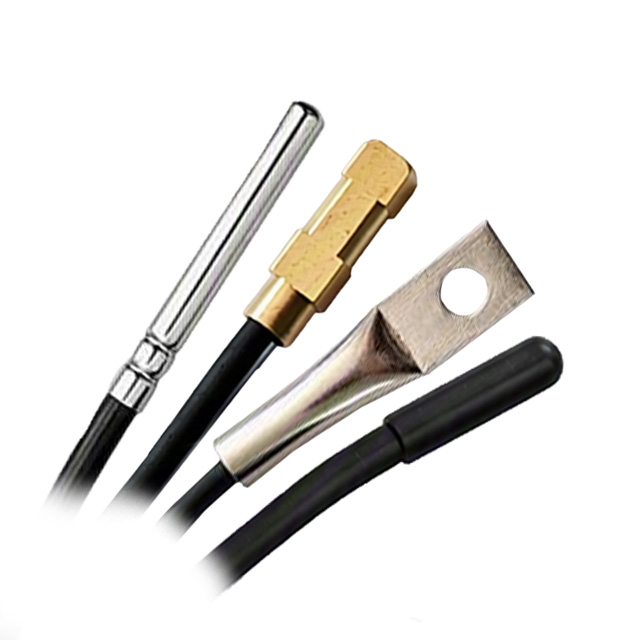

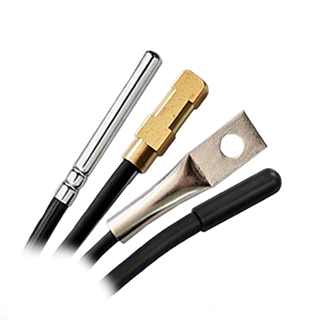

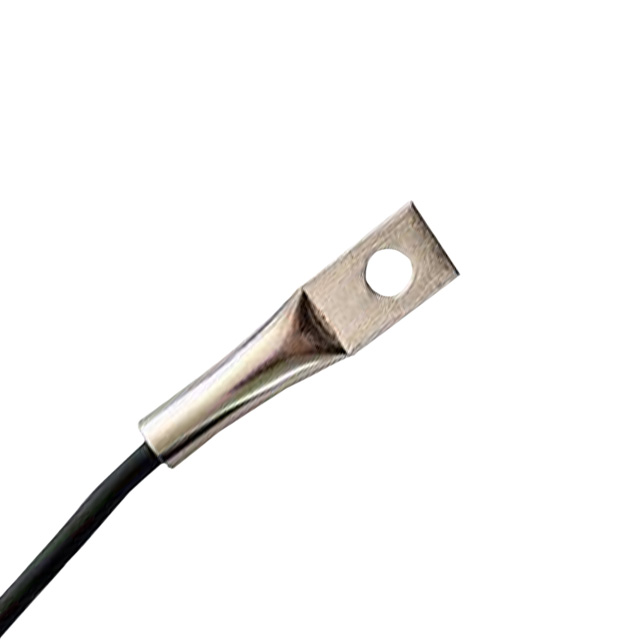

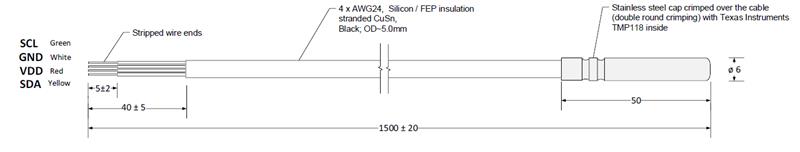

| Mechanical / build options | Probe housing D≥ϕ5 mm and L≥40 mm; cable options available with 4-6 wires and multiple materials/lengths. |
| Address/wiring options | I2C address options: 0x48, 0x49, 0x4A, 0x4B, plus an unaddressed external option depending on wiring configuration. |
Contact Our Temp Sensor Team
Whether you seek standard products or custom designs, CTS can partner with you on your temperature sensor solution.
