DirecTemp® is a high-precision thermistor that combines a 14-bit analog-to-digital converter and a simple USB communication interface to capture real-time temperature data. This solution can communicate either as a human interface device (HID), which auto installs to interface with the DirecTemp® data logging software, or as a virtual serial port with which custom or third-party software may be used. DirecTemp® probes are calibrated in the CTS metrology laboratory and can be re-calibrated and returned to service for extended life. The absolute accuracy and repeatable precision of the DirecTemp® USB temperature acquisition system will become invaluable to your application.



Reach out to us with any questions.
We're happy to help.

Contact Us



  • Features
  • FAQ
  • Featured Products
  • Technical Resources

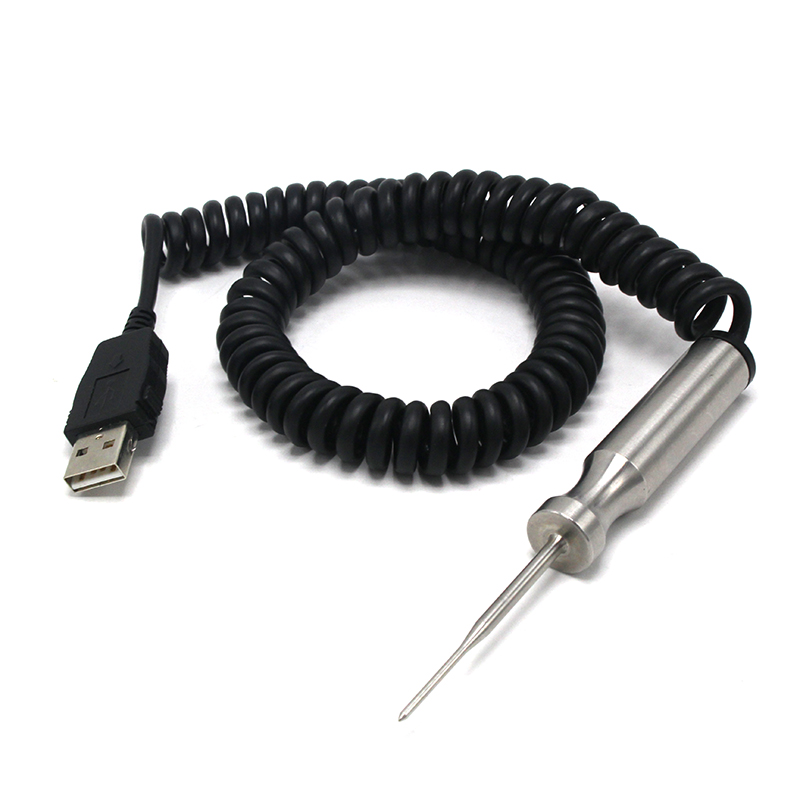

DirecTemp USB thermometer with curled-up cord attached

  • Up to 0.1°C absolute accuracy
  • Up to 0.01 resolution

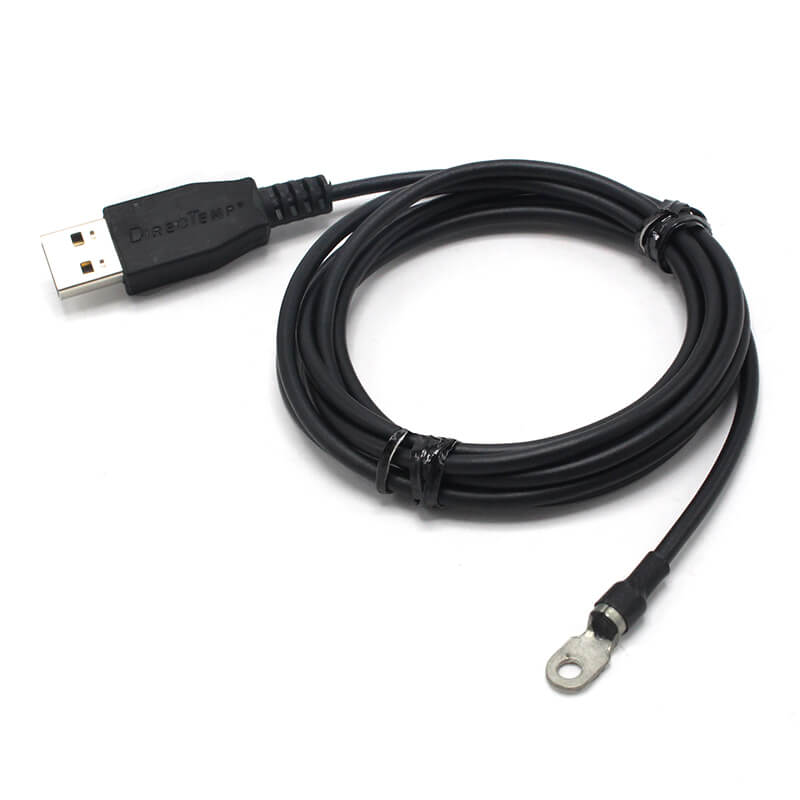

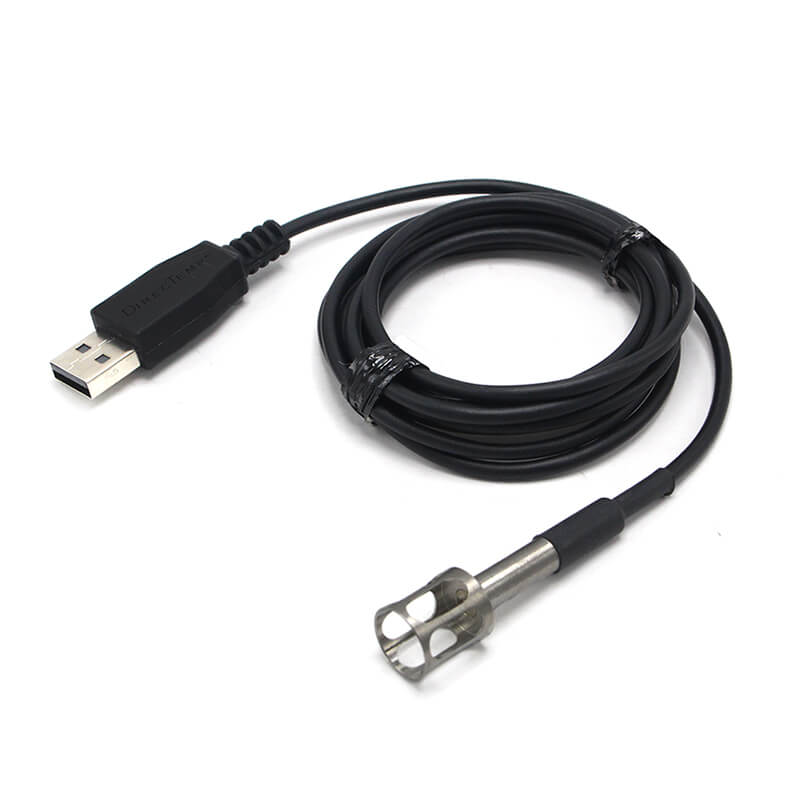

  • Choose probe style, cable length, and critical temperature point
  • PC powered, no batteries
  • Temperature range: -55°C to 150°C with proper probe selection
  • RoHS Compliant

*User-specified single point temperature and tolerances available.
Warning: Do not use in human life support applications. This device is not designed nor intended to operate in situations where human injury will result in the event of a failure.

Will this USB temperature sensor work in Windows?

Yes, it is compatible with 32-bit and 64-bit systems, and works in Windows versions XP, Vista, 7, 8 and 10.

What is the DirecTemp®’s response time?

Electrically, it is 250 ms minimum recommended measurement for PnP. Use stream mode on a serial probe for ~12 samples per second. Thermal response time will vary depending on the selected probe and its thermal mass and the dissipation of the medium in which it is placed.

Will this USB temperature sensor work with a smart phone or PDA?

It might work if the device has a host A jack. We have used the device with Windows Mobile 5 and 6 with a host USB or a compact flash to USB host adapter. The DirecTemp® has not yet been demonstrated operational with USB OTG and the mini AB plug on most dual purpose phone USB jacks.

Is this device USB 2.0?

The DirecTemp® is USB Full Speed which is USB 1.1, but USB 2.0 compatible. This is sufficient for sending characters for temperature measurement.

What is the longest cable length I can get?

We have successfully built and accurately tested a device with 130 feet of cable between the USB connector and the probe.

Are these devices susceptible to EMI?

If the wire between the USB plug and the probe are shielded and twisted, the effect will be minimized, but the effects are field dependent. If you need further information, please contact CTS.

Can DirecTemp® probes be recalibrated?

Yes, CTS recalibrates DirecTemp® probes. NIST-traceable calibration certificates are available if requested. Contact CTS for more information.

Can I talk to this device with my own software or integrate this device in my own system?

Yes, if the DirecTemp® is plugged into a USB host jack. Visit the temperature software download page to get the API and some example code.

Will this device work in Labview?

No, not like the serial device will. There is a process of “hijacking” the device with a custom driver in Labview, but installing that driver will remove the ability to have the probe interface with the DirecTemp® software. This driver can be removed and the probe functionality restored. Using the Plug and Play probe with Labview is not currently supported, and CTS cannot offer help for this approach. If you get it to work reliably please let us know; we would love to find out how you did it!

How do I talk to this probe in Linux?

Use the Minicom. The device will show up as TTYACMX, where X is the 0 based number in the order it was plugged in.

How do I talk to this probe in Mac?

Use a terminal program and find the virtual serial port.

Will this USB temperature sensor work in older versions of Linux?

The device does not enumerate properly in kernel 2.4 series without extra drivers. Most newer 2.6 kernel distros will enumerate the developer probe as a valid serial port.

Is the serial probe a USB or serial device?

The serial probe is a USB device that “acts” like a serial device and communicates through a serial port the software creates, but is not a physical plug.

How does DirecTemp® work in Labview?

Labview’s VISA serial server works with the device just as if it were a physical serial port.

Does it work with Labview in Linux?

We have not tried this, but if you can get Labview to communicate with a TTY device, then it should work.
