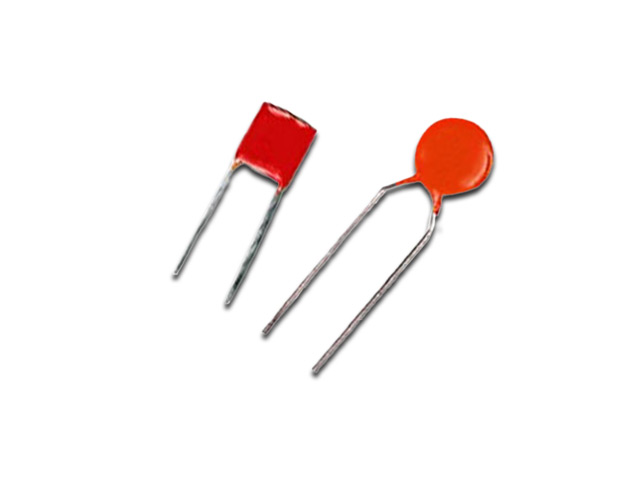

Capacitors

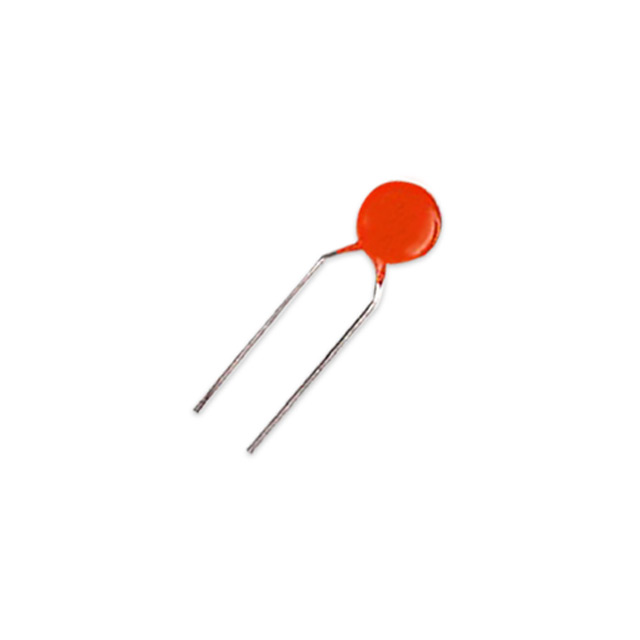

Ceramic Disc Capacitors have long been the standard of the industry, and offer the broadest selection of available ceramic formulations and package sizes. With a capacitance range of 1 pF to .082 mF, CTS capacitors offer a variety of TC materials and tolerances. The range of temperature characteristics available makes the products suitable for the ultra-stable requirements of tuned circuits to the general purpose needs for coupling and bypassing. Encapsulated with a hard, bright polymeric coating, these capacitors are formulated to provide mechanical protection under normal environmental conditions.
Special disc products are also available from CTS upon request. Special physical requirements are also available, including customized lead types. In addition to the standard nominal lead spacing shown in the capacitance charts, special lead spacing requirements are an option upon request.
Reach out to us with any questions.
We're happy to help.
- Features
- Technical Resources
- Available in 25, 50, 100 and 500 Volt.
- Thickness from .100 to .175 (depends on voltage)

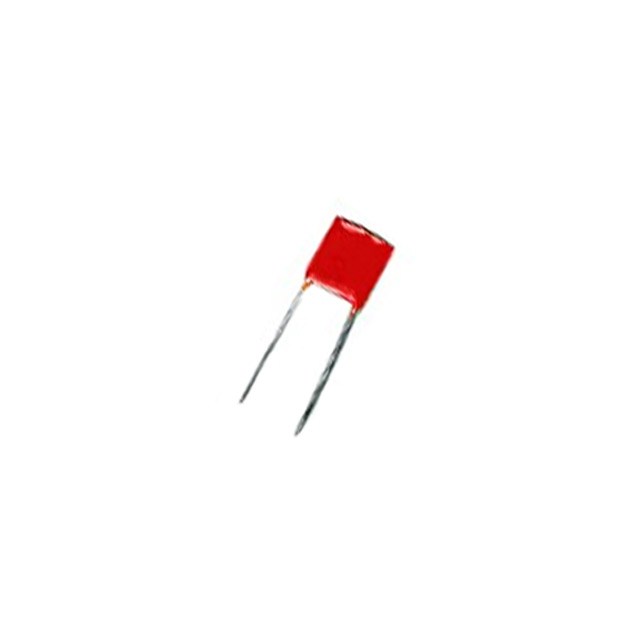

- Square sizes from (.100" X .100") to (.600" X .600")
- Operates efficiently at -55° to 125°.
- Body Insulation: Conformal Coating
- Standard max coating on leads is .125"; closer control is optional at extra cost
- Marking: Trademark, Cap, Tol., T.C., and Voltage (Voltage omitted on 500V)
