The CTS line 77, 78, and 79 series filtered Assembly plates provide ease of installation and line customization of standard-size plates. Filter plates are an efficient and cost-effective solution for filtering multiple lines into or between different system compartments.

For higher frequency applications (<50 MHz), filter plates can be more effective than typical surface mount solutions. The inherent shielding characteristics of these plates create an effective RF barrier offering excellent insertion loss and isolation for frequencies greater than 5 MHz. The pre-assembled plates, which are 100% tested for critical parameters, significantly reduce the time and resources required to install solder mount filters individually.

The 77 Series Quick Connect and 78 Series Miniature Quick Connect filter plates (pages 2 & 3) feature a base plate with built-in installation clips. These clips allow for cost-effective mounting into the system bulkhead without the expense or the time associated with traditional hardware. The Quick Connect filter plate offers one or two rows totaling up to 26 lines.

The Miniature Quick Connect filter plate provides a lower profile and works with up to 10 lines. Up to 40 lines are available on the standard bolt-in filter plate in the two-row configuration.


Reach out to us with any questions.
We're happy to help.

Contact Us


  • Features
  • Applications
  • Popular Products
  • Technical Resources

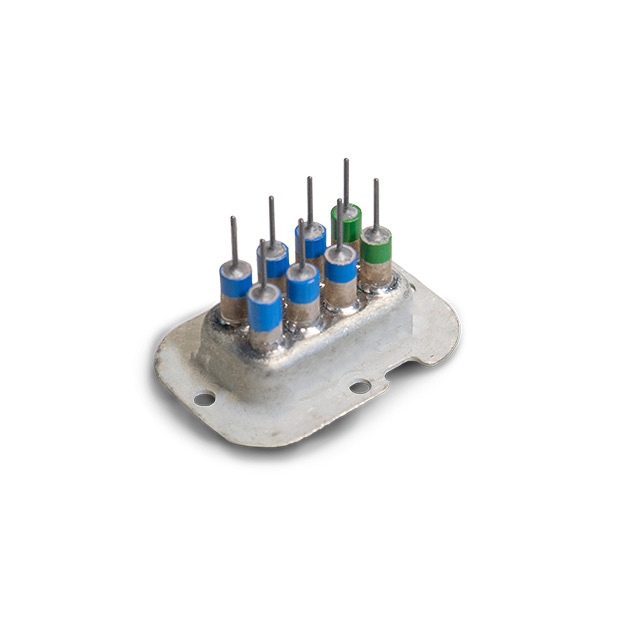

CTS filter assembly on white background

Base Plate Material: Copper Alloy or Nickel-Silver

Base Plate Thickness:

  • 77 and 78 Series ...... 0.012" [0.3mm]
  • 79 Series .................. 0.028" [0.7mm]

Plating: Matte Tin

Lead Material: Copper Alloy

Lead Plating: Gold Plate

Lead Diameter: Ø 0.025" [0.64mm]

Current Rating: 5 Amps
