Thread Mount Feedthrough Filters

Woman lying on back in CT scan machine

Main Content

The CTS threaded bushing feed-throughs is one of the broadest in the industry and offers a wide range of rejection options supporting Pi-Type, L-Type, and C-Type filter feed-thrus providing 5pF to 1.4µF, support for up to 1000Vdc working voltages, up to 25A of current, and able to provide up to 70dB of rejection at 100MHz and 1GHz.

Filters are assigned a four-digit style number followed by a three-digit variation number. (Example: 4100-003)



Reach out to us with any questions.
We're happy to help.

Contact Us



  • Features
  • Applications
  • Popular Products
  • Technical Resources

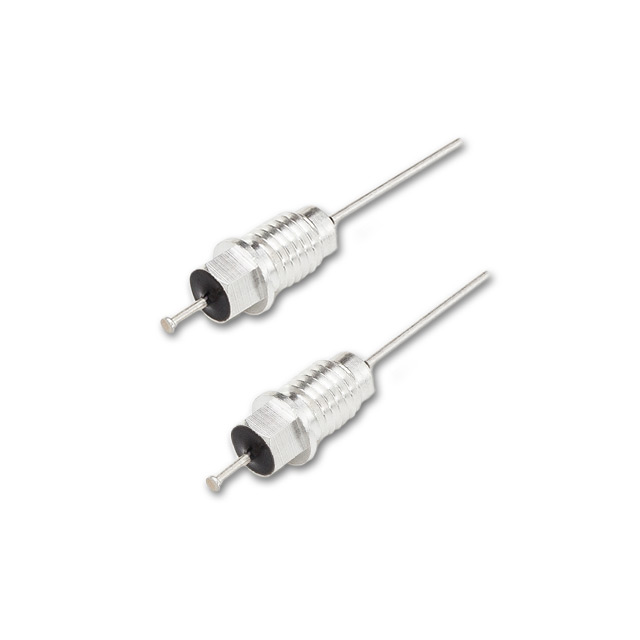

CTS EMC Threaded feedthrough filters

  • Pi-Type, L-Type, and C-Type filter feed-thrus
  • Providing 5pF to 1.4µF
  • Support for up to 1000Vdc working voltages
  • Up to 25A of current
  • Provide up to 70dB of rejection at 100MHz and 1GHz



  • Microwave applications
