A diplexer is a device capable of either combining or separating signals at different frequencies. They are commonly employed throughout telecommunication and radio frequency engineering, typically when multiple signals of varying frequencies need to share a single atenna or cable. The diplexer can combine these into a single, transmissible signal. Occasionally, diplexers are used conversely to separate signals, for instance to route signals of different frequencies to their respective receivers and transmitters.

CTS diplexer solutions mainly consist of the XCBC series and the DPX series. The former is ideal for diplexing of widely separated bands, whereas the latter is best suited for narrowly spaced bands. Yet, the two series can be flexibly used together to create 3- or 4-way mutliplexers. All of them share a universal footprint for easy PCB population of any frrequency version.


Reach out to us with any questions.
We're happy to help.

Contact Us


  • Features
  • Applications
  • Popular Products
  • Technical Resources

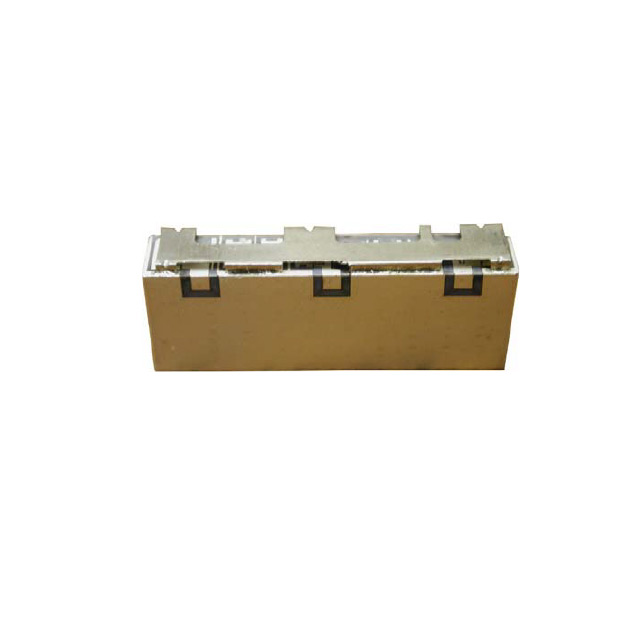

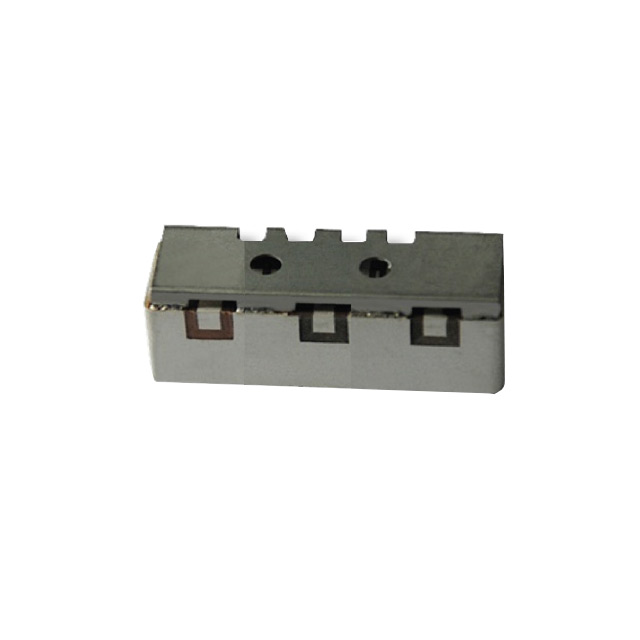

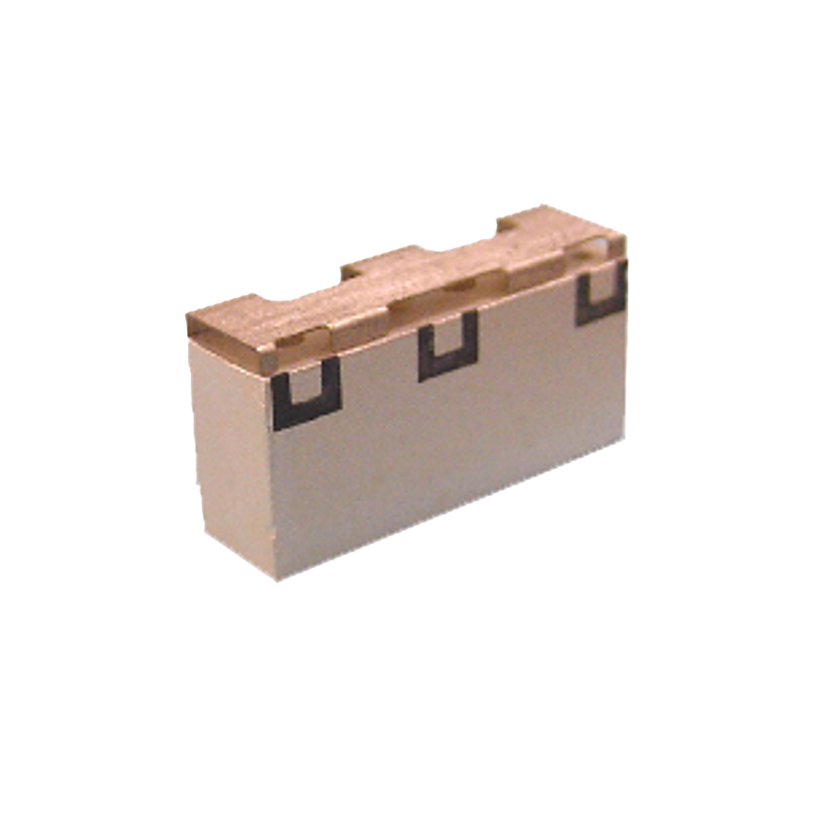

Two diplexer units from CTS corporation

Features for Narrowband Diplexers (DPX)

  • Reliable Surface-Mounted Ceramic Filters
  • Combining of Neighboring Frequency Bands
  • Antenna Sharing in Multi-Band Small Cells, DAS and Repeater Systems

Features for Wideband Combiners (XCBC)

  • Complements DPX with Wideband Combining
  • Enables High-Power Antenna Sharing

Shared Features

  • Universal PCB Footprint
  • Options for Size, Bandpass Range, Attentuation, Max. Insertion Loss and Power
  • Wireless Infrastructure Applications
  • Telecommunications
  • TDS-CDMA Infrastructure
  • Satellite Communication
  • Radio Broadcasting
