Single Crystal Shear Plates

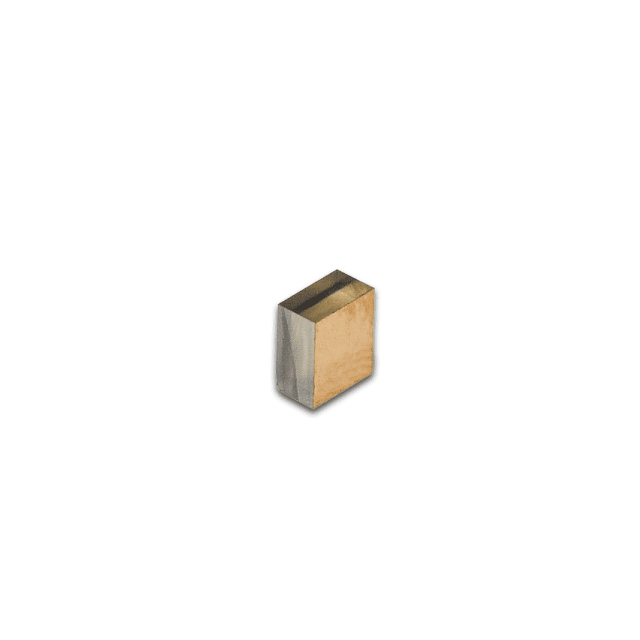

Standing Piezoelectric Single Crystal Shear Plate

Main Content

Shear Plates

Piezoelectric single crystal shear plates make use of the unique shear deformation, enabling high strain and efficient power conversion. These components are typically employed in underwater applications and non-destructive testing (NDT).



Series Resources

Contact Us

Features

  • Shear Vibration Mode
  • Extremely High Piezo Coefficients
  • Unique Longitudinal Shear Mode (d36)

Applications

  • Underwater Applications
  • Structural Health Monitoring (SHM)
  • Non-Destructive Testing (NDT)

Add-Ons and Custom Solutions

Single crystal shear plates are manufactured according to customer specifications. Contact us to enquire about our custom capabilities.

Common Shapes and Size Ranges

The products can be designed to specific dimensional or frequency requirements within our capabilities.

Please note that not all combinations are possible.

Technical Specifications
Length (d36) Up to 90 mm
Width (d36) Up to 90 mm
Length (d15 or d24) Up to 50 mm
Width (d15 or d24) Up to 50 mm
Thickness Down to 0.067 mm
  • Related Products
  • Technical Resources
Please wait while we gather your results.
Lying Piezoelectric Single Crystal Boule

Single Crystal Material Properties

CTS offers fine-tuned single crystal materials, based on the PMN-PT and PIN-PMN-PT systems.

Piezoceramic shear plates that can be stacked

Piezoceramic Shear Plates and Shear Stacks

Designed to utilize the shear deformation, these components offer high piezoelectric coefficients and high mechanical stifness. Ideal for accelerometer applications.

Piezoelectric Single Crystal Ring from CTS Corporation on white background

Single Crystal Discs, Rings and Rods

With high electromechanical coupling, these single crystal components are ideal for underwater active sonar applications.

Thin Piezoelectric Single Crystal Plates from CTS Corporation on white background

Single Crystal Plates, Wafers and Bars

Commonly employed in medical ultrasound imaging, single crystal plates are versatile and reliable components that offer even stress distribution and accurate frequency control.
