Single Crystal Discs, Rings and Rods

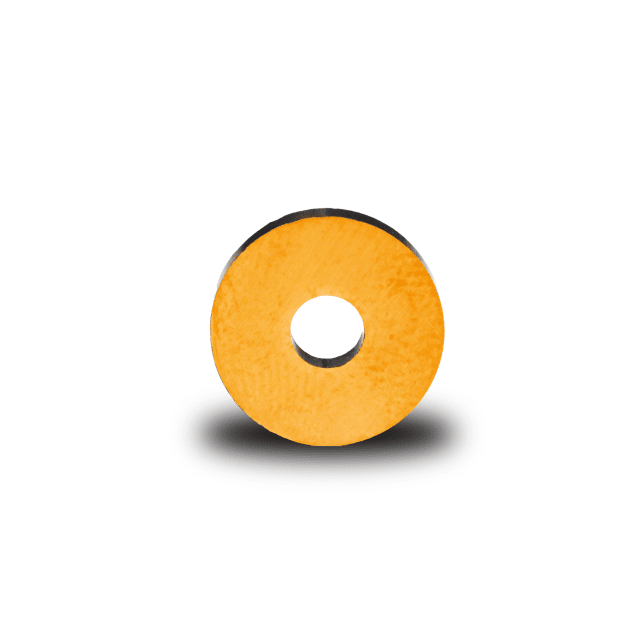

Standing Piezoelectric Single Crystal Ring from CTS Corporation on white background

Main Content

Discs, Rings and Rods

Single crystal discs, rings and rods offer extremely high electromechanical coupling, enabling more compact and efficient solutions for demanding applications. Rings are particularly beneficial to underwater active sonar applications.



Series Resources

Contact Us

Features

  • High Piezoelectric Coefficients
  • Efficient Energy Conversion
  • Uniform Stress Distribution
  • Compact Design

Applications

  • Active Sonar Transducers
  • Therapeutic Ultrasound
  • Optical Applications

Add-Ons or Custom Solutions

Single crystal discs, rings and rods are manufactured according to customer specifications. Contact us to enquire about our custom capabilities.

Common Shapes and Size Ranges

The products can be designed to specific dimensional or frequency requirements within our capabilities.

Please note that not all combinations are possible.

Technical Specifications
Outer Diameter From 1 mm
Thickness 0.067 to 5 mm
