Modular Sensor Designs

CTS designs and manufactures busbar current sensors with accurate monitoring, enhanced safety and  efficient power distribution.  Busbar current sensors are devices used to measure electrical current in busbar systems, which are conductors used to collect electric power from incoming feeders and distribute it to outgoing feeders. Efficient sensing for motor current is critical to electric vehicles (BEVs, HEVs, and PHEVs).



Features

  • Current sensors for mounting on busbar systems​
  • Large range of currents up to 1500 A with ​less than 1% linearity error.

  • Engineering, prototyping, and high-volume manufacturing ​

  • Based on platform design for first time right​

  • Ideal for automotive and industrial applications

Applications

  • High volume Industrial and Automotive with custom specific calibration​

  • Optimized mechanical design for vertical integration

Customized Solutions

We provide customized solutions to meet a wide range of performance needs based on our established modular design building blocks. CTS current sensors are accurate within ± 1% and solutions can be tailored to fit unique needs. Our Sensors provide a cost-effective solution for high-amperage drive motors, even with customized packaging and mounting options.

Designed using Hall-effect technology, these sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your busbar arrangement or other housing requirements, our engineers can build a sensor to exact specifications, guaranteeing that it will fit your needs.

  • Application Information
  • Current Sensor Customization Process
  • Technical Resources

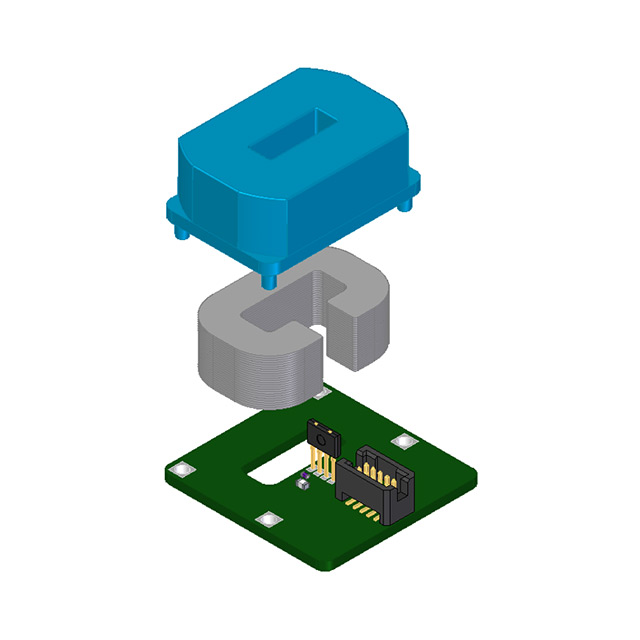

Current sensor exploded view

These AC products range up to 1500 A and can be packaged on circuit board applications as well as in stand-alone mounting packages. A variety of customization options are available, such as calibration and analog output range. Our engineers can work with your team to create sensors that will fit within your application constraints. This line of sensing solutions can be as accurate 1% linearity error.



Icons of hands shaking, two people helping one another up stairs and currency billsIcons of jigsaw piece, arrows pointing upwards and grinding gears

Skip to Results Listingclear all

Resource Type

clear

Product (Family)

clear
Please wait while we gather your results.

Results Updated

3 Results Listed

CTS AC Current Sensors - Tech-Brief thumbnail

Application Notes / Tech Briefs

CTS Clamp-On Current Sensors Tech Brief Thumbnail

Application Notes / Tech Briefs

Transportation and eMobility brochure thumbnail of automotive products

Brochures / Catalogs, Corporate Documents

Products

Part Number Current Range (A) Output Opening Size mm (WxH)
CTS-CS-BAX-20-0250 0 - 250 Analog 20x6
CTS-CS-BAX-20-0500 0 - 500 Analog 20x6
CTS-CS-BAX-20-0750 0 - 750 Analog 20x6
CTS-CS-BAX-20-1000 0 - 1000 Analog 20x6
CTS-CS-BAX-20-1250 0 - 1250 Analog 20x6
CTS-CS-BAX-20-1500 0 - 1500 Analog 20x6
