CTS-CS-CAX-04
CTS-CS-CAX-04
The CTS-CS-CAX-04 is an analog open-loop current sensor module designed for non-intrusive and isolated measurement of electric currents. Thanks to the clamp-on design, the contactless current sensor can be safely installed without interrupting the cable.
Series Resources
- Data Sheet
- ROHS
- Reach Statement

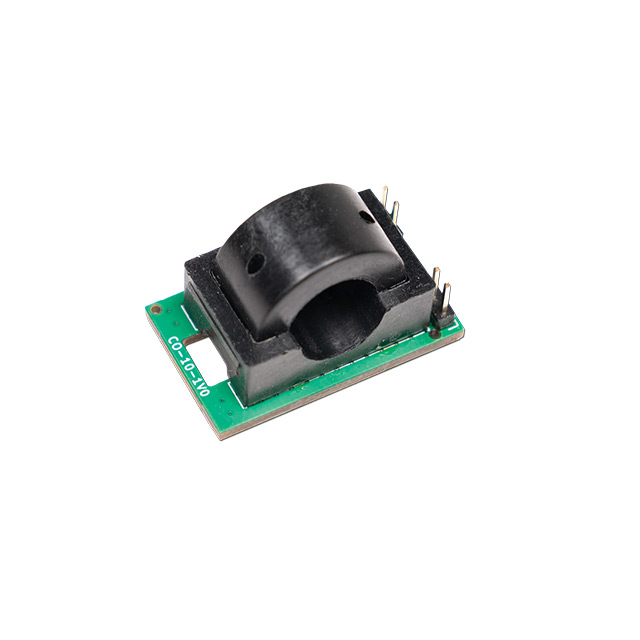

4[mm] Clamp-On Current Sensor Module

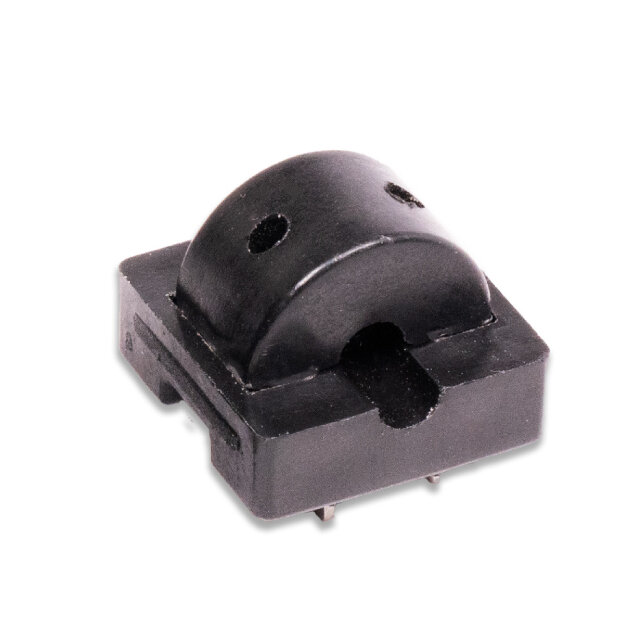

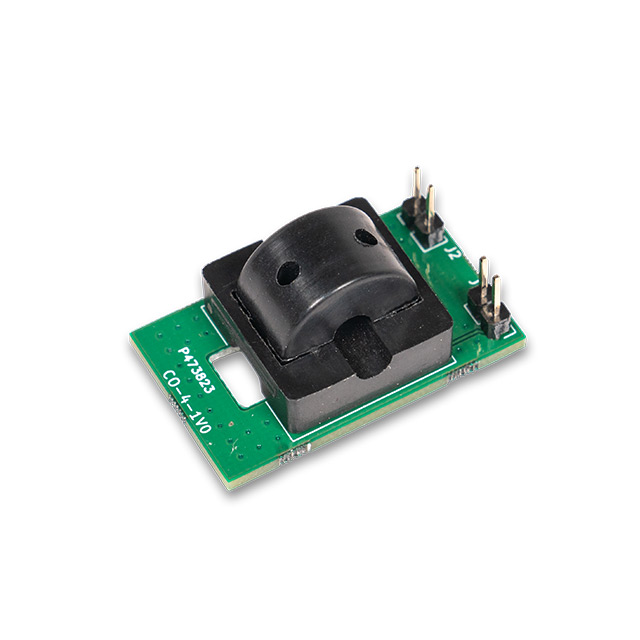

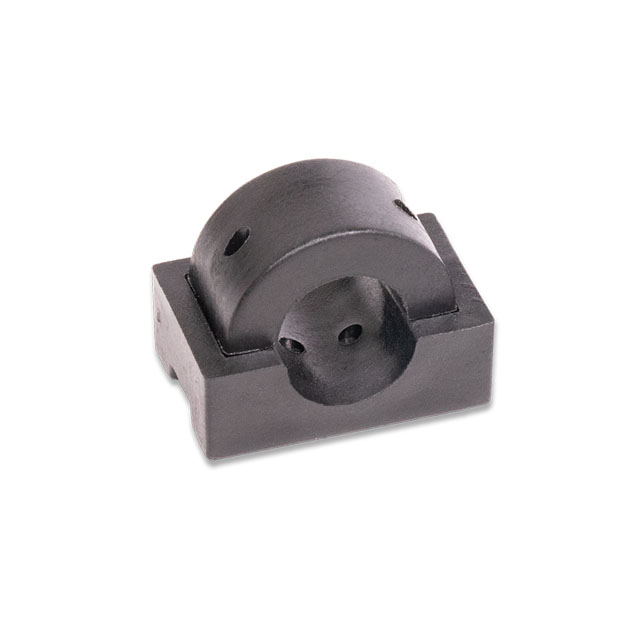

The module features a PCB with a Melexis IMC-Hall® planar current sensor, a CTS-CS-CAX-04 Clamp-On shield, and all necessary components for easy installation and operation.
With a 5V DC supply, the module delivers a linear analog output ranging from 500 mV to 4500 mV, corresponding to the primary input current. The CTS-CS-CAX-04 model ensures excellent linearity with an error margin of less than 0.5% FS. The integrated Melexis IMC-Hall® sensor provides a low offset of ±5 mV and a sensitivity drift of just 1% across the full temperature range.
This module is ideal for a variety of applications, including DC and AC current sensing up to 30 kHz, motor control, battery monitoring, charge control, white goods, and more.
Features
- Low hysteresis
- High Permeability
- Hall-Sensor Measurement
- High Linearity up to 150 A
- Temperature Range: 10 to 85 °C • Low Offset drift <5 mV
- Low Sensitivity drift <1 %
- DC and AC (30 kHz)
- Snap-Fit installation
- Non intrusive sensing
- Small Size, Lightweight
- Excellent output linearity
Applications
- IoT
- Industrial
- E-metering
- Photovoltaic

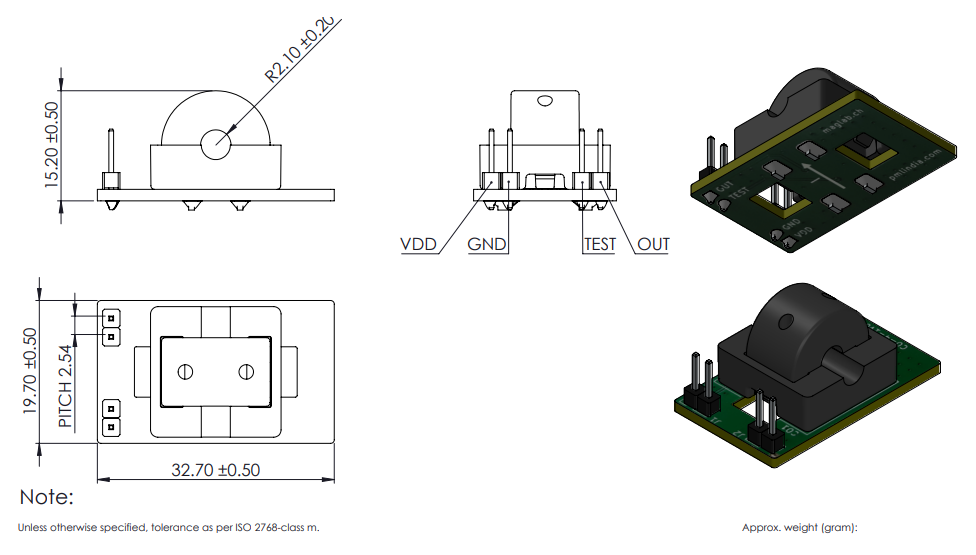

Dimensions
Standard Product, Add-Ons, or Custom Solutions
With both off-the-shelf and customized solutions, we meet a wide range of performance needs based on our established modular design building blocks. These sensors provide a cost-effective solution for high-amperage drive motors, even with customized packaging and mounting options.
Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can build a sensor to your concise specifications, guaranteeing it will fit your requirements.
Specifications
| Absolute Maximum Ratings - Nonoperating conditions | |
|---|---|
| Positive Supply Voltage | +10 V |
| Reverse Supply Voltage | -0.3 V |
| Positive Output Voltage | +10 V |
| Reverse Output Voltage | -0.3 V |
| Output Current | ±50 m A |
| Reverse Output Current | -50 m A |
| Ambient Temp. | 0 to +120°C |
| ESD Human Body Model | +50 kV |
| General Electrical Specification - Absolute Maximum Ratings | |
|---|---|
| Nominal Supply Voltage | 4.5 - 5.5 V |
| Supply Current | 9 - 15 mA |
| Output Resistive Load | 10 - 200 kΩ |
| Linear Output Range | 10 - 90 %VDD |
| Broken GND Ouptut Level | 96 - 100 %VDD |
| Broken VDD Ouptut Level | 0 - 4 %VDD |
| Output Quiescent Voltage | 50 %VDD |
| Analog Output Specification - Accuracy specification | |
|---|---|
| Thermal Offset Drift | ±5 mV |
| Thermal Sens. Drift | ±1 %S |
| RMS Output Noise | 8 mVRMS |
| VOQ Ratiometry | ±0.4 %VOQ |
| Sensitivity Ratiometry | ±0.4 %VOQ |
| Timing and Frequency Specification - Timing specification | |
|---|---|
| Refresh Rate | 1 μs |
| Step Response Time | 2 μs |
| Bandwidth | 30 kHz |
Operating Parameters: TA = +10 to +85 ◦C, VDD = 5V±10%,
unless otherwise specified.
