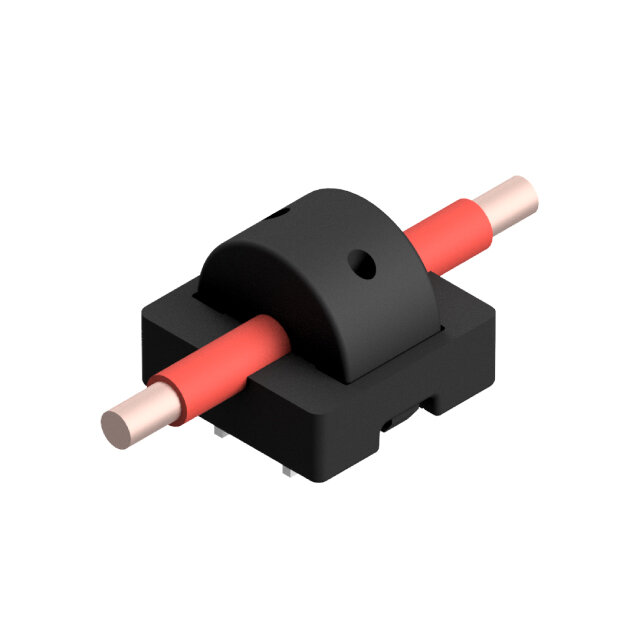

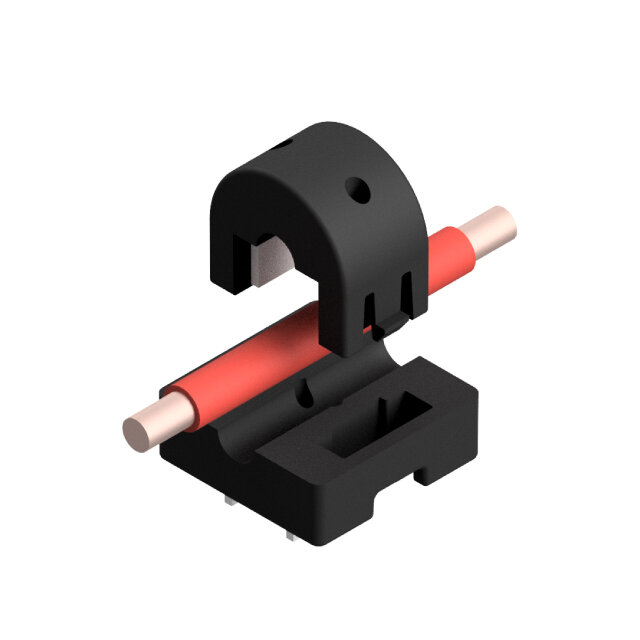

This magnetic field concentrator is designed for non-intrusive and isolated measurements of electric currents. Thanks to the Clamp-On design, the contactless current sensor can be safely installed without interrupting the cable.



Series Resources

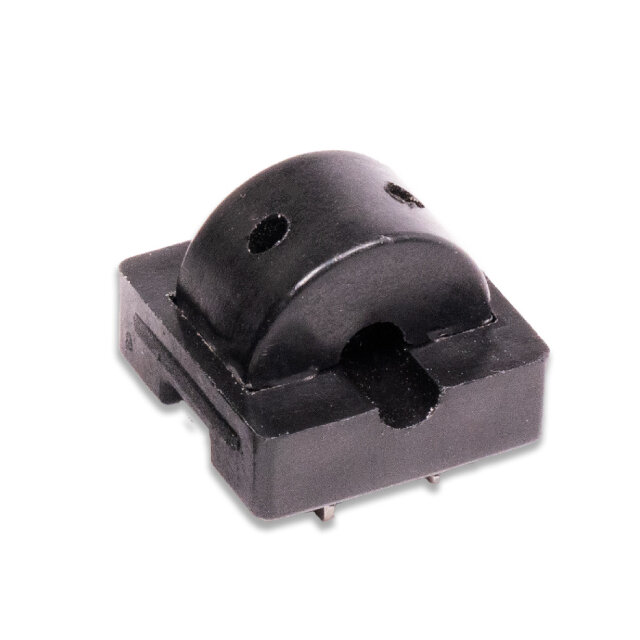

04[mm] Magnetic Field Concentrator

A magnetic field concentrator is a device that focuses the magnetic flux generated by an electrical current flowing through a system, such as a current-conducting wire.

The CTS-CS-CXX-04 is a soft ferromagnetic shield with high linearity and low hysteresis, ideal for DC and AC current sensing, motor control, battery monitoring, and more. It can be paired with planar magnetic field sensors to measure currents up to ±150 A. Its hollow bottom design allows for a compact solution, and it can be easily soldered to a PCB for a secure connection.

Features

  • RoHS compliant
  • Low hysteresis
  • High Permeability
  • Hall-Sensor Measurement
  • High Linearity up to 150 A
  • Temperature Range: 10 to 120 °C
  • DC and AC compatible
  • Snap-Fit installation
  • Non intrusive sensing
  • Small Size, Lightweight
  • Excellent output linearity
  • Planar PCB installation

Applications

  •  IoT
  • Industrial
  • E-metering
  • Photovoltaic

Standard Product, Add-Ons or Custom Solutions

With both off-the-shelf and customized solutions, we meet a wide range of performance needs based on our established modular design building blocks. These sensors provide a cost-effective solution for high-amperage drive motors, even with customized packaging and mounting options.

Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can build a sensor to your concise specifications, guaranteeing it will fit your requirements.

Find a Solution

Specifications

Magnetic material specifications
Relative Permeability 100,000 a.u.
Initial Relative Permeability 7,000 a.u.
Saturation Flux Density 1 T
Hysteresis 2.8 A/m
Curie Temperature 1,450 °C



Plastic material specifications
Material Glass reinforced PA6
Glass-Fiber content 15%
Min. usage temperature 10 °C
Max. usage temperature 120 °C



Dimensions

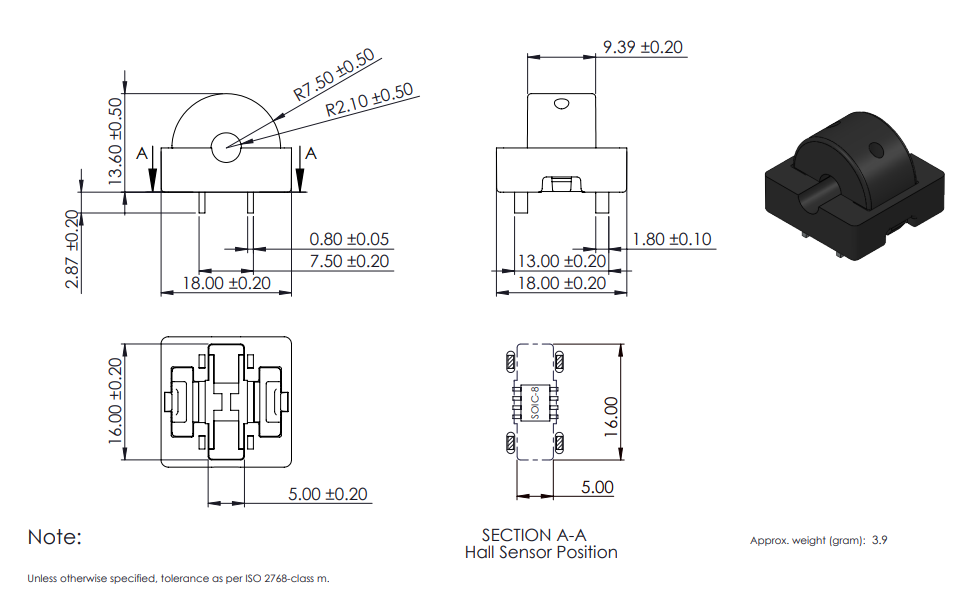

Technical drawing of the CO-04-SF Dimensions



Please wait while we gather your results.

CTS-CS-CAX-04

The CTS-CS-CAX-04 is a 4mm analog open-loop clamp-on current sensor module designed for non-intrusive and isolated measurement of electric currents.

CTS-CS-CAX-10

The CTS-CS-CAX-10-A is a 10mm analog open-loop clamp-on current sensor module designed for non-intrusive and isolated measurement of electric currents.

CTS-CS-CXX-04

The CTS-CS-CXX-04 is a 4mm clamp-on magnetic field concentrator designed for non-intrusive and isolated measurements of electric currents.

CTS-CS-CXX-10

The CTS-CS-CXX-10 is a 10mm clamp-on magnetic field concentrator designed for non-intrusive and isolated measurements of electric currents.
