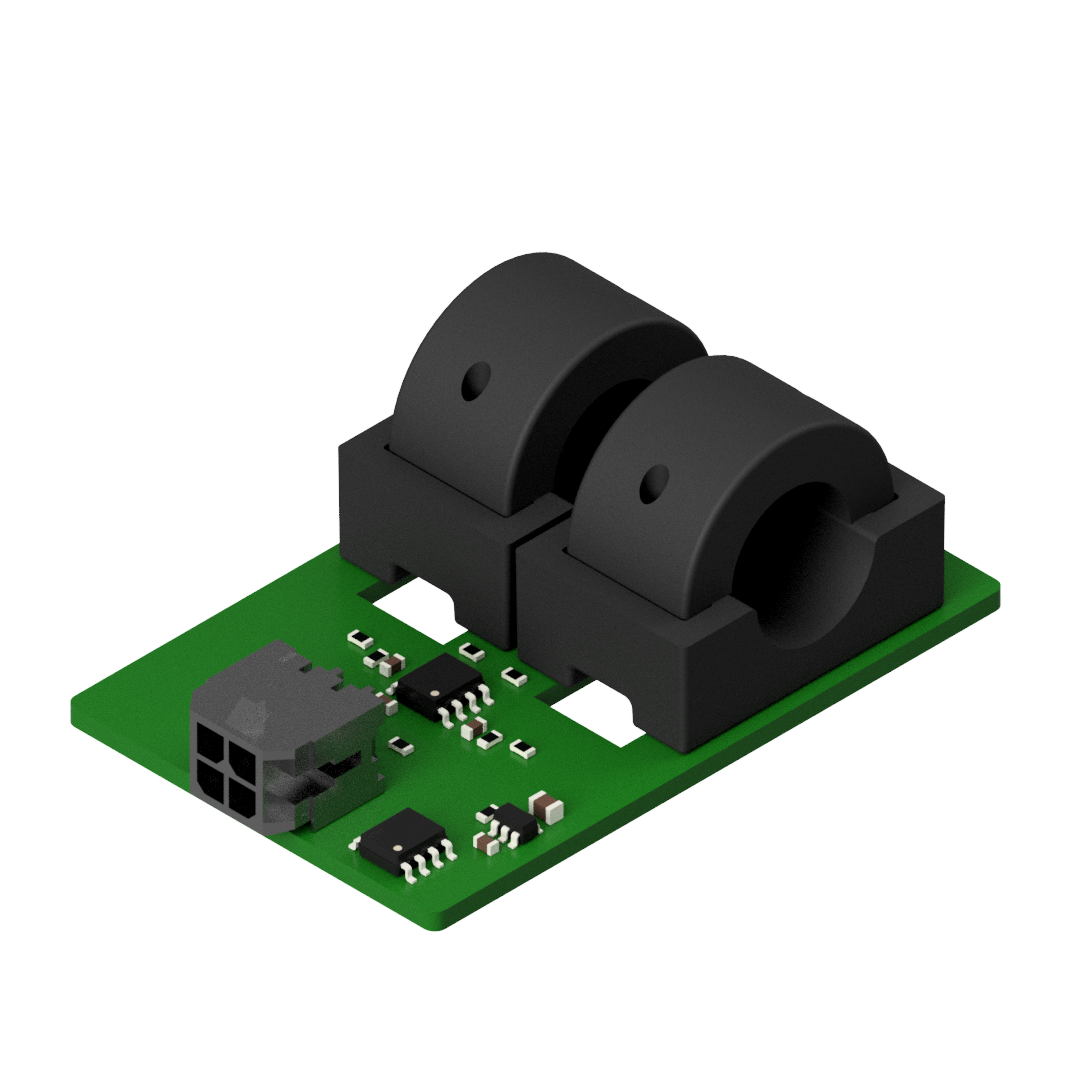

MDC-DI-10S-A
Dual Range Current Sensor
A dual-range current Sensor for safety-critical applications, offering two independent analog outputs for redundancy. Thanks to the non-intrusive clamp-on design, the sensor can be easily installed without disconnection, making it ideal for retrofit installations in industrial, IoT, and metering applications. Furthermore, a broad dynamic range of currents can be measured and the customer requires no calibration.
Series Resources
Current Sensing for High Power
When powered with a DC voltage of 5V or 10V, the module delivers a linear analog output ranging from 0.5V to 4.5V or 1V to 9V, corresponding to the primary input current. This sensor boasts exceptional linearity, with an error margin of less than 0.5% FS.
Equipped with a Melexis IMC-Hall® current sensor, the module offers outstanding offset stability, as low as ±5mV, and maintains sensitivity drift to just 1% across the full temperature range. The module has a differential output. Each Hall-Sensor will generate a rising or falling signal, depending on current the flow.
Features
- Supply Voltage: 5 or 10 VDC
- Hall-Sensor Measurement
- Temp. Range: 10° to 85°C
- Low Offset Drift <5 mV
- Low Sensitivity drift <1 %
- DC and AC up to 30kHz
- Snap-Fit installation
- Non intrusive sensing
- Small Size, Lightweight
- Excellent output linearity
- Redundant Current Measurement
Applications
- Industrial
- E-metering
- E-mobility
- Photovoltaic
- Industrial Power Plants
- Redundant measurements
- Battery management system
Dimensions
Standard Product, Add-Ons, or Custom Solutions
Designed using Hall-effect technology, all our sensors provide a consistent, high-performance signal in a lightweight, streamlined solution. Regardless of your board arrangement and housing requirements, our engineers can provide you with a standard sensor or build a sensor to your concise specifications, guaranteeing it will fit your requirements.
This specific design is a custom solution that provides a cost-effective solution for high-amperage applications based on our established modular design building blocks.
Specifications
| Absolute Maximum Ratings - Nonoperating conditions | |
|---|---|
| Positive Supply Voltage | +10 V |
| Reverse Supply Voltage | -0.3 V |
| Positive Output Voltage | +10 V |
| Reverse Output Voltage | -0.3 V |
| Output Current | ±50m A |
| Reverse Output Current | -50m A |
| Ambient Temp. | 0 to +105°C |
| General Electrical Specification - Absolute Maximum Ratings | |
|---|---|
| Nominal Supply Voltage | 4.5 - 5.5 V |
| Supply Current | 18 - 30 mA |
| Output Resistive Load | 10 - 100 kΩ |
| Linear Output Range | 10 - 90 %VDD |
| Broken GND Ouptut Level | 96 - 100 %VDD |
| Broken VDD Ouptut Level | 0 - 4 %VDD |
| Primary Current | 10 - 250 Apk |
| Output Quiescent Voltage | 50 %VDD |
| Analog Output Specification - Accuracy specification | |
|---|---|
| Thermal Offset Drift | ±5 mV |
| Thermal Sens. Drift | ±1 %S |
| RMS Output Noise | 8 mVRMS |
| VOQ Ratiometry | ±0.4 %VOQ |
| Sensitivity Ratiometry | ±0.4 %VOQ |
| Timing and Frequency Specification - Timing specification | |
|---|---|
| Refresh Rate | 1 μs |
| Step Response Time | 2 μs |
| Bandwidth | 30 kHz |
Operating Parameters: TA = +10 to +85 ◦C, VDD = 5V±10%,
unless otherwise specified.
