eBrake™

Custom Modular Pedal

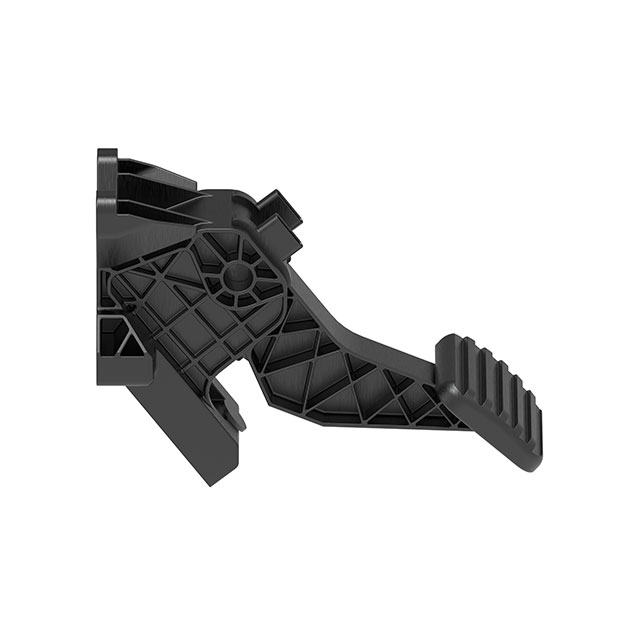

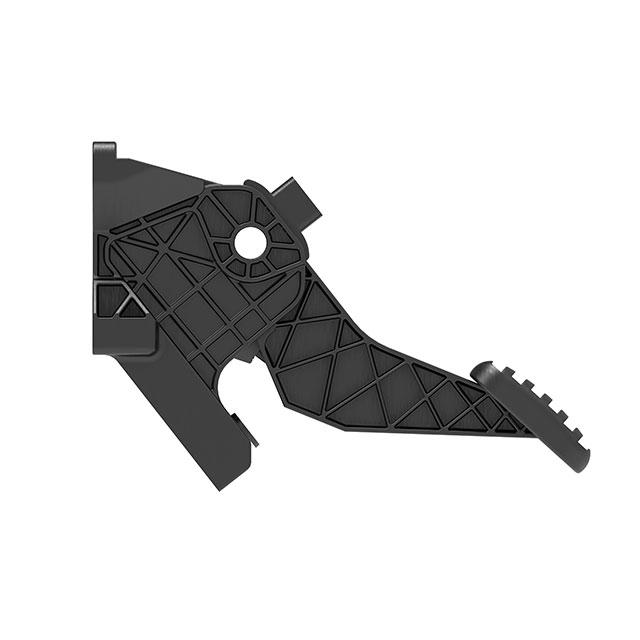

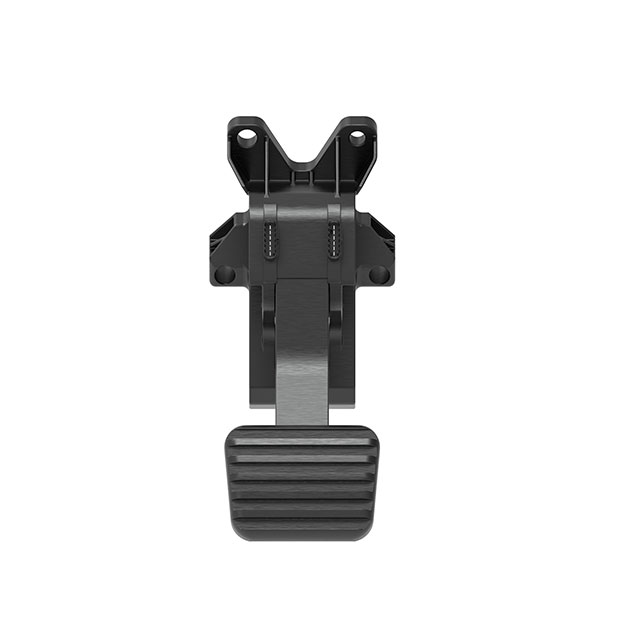

The CTS eBrake™ is a custom modular pedal that operates as a brake-by-wire technology designed for electronic braking systems (EBS). Safety being at the forefront of our design process for automotive parts, this system utilizes multiple sensor technologies to protect end users.

This design allows OEMs to seamlessly integrate brake-by-wire technology and establish electronically controlled hydraulic brake systems (EHB) without requiring mechanical input. The CTS eBrake™ also optimizes footwell packaging, reducing the space needed for brake pedal movement and enhancing overall vehicle interior design.

eBrake™ Resources

Better Driver and Engineering Experiences

Our solution provides the driver with a better braking experience by creating a smoother, more premium feel. When force is applied to the eBrake™, rather than triggering a mechanical force in the hydraulic system, electronic position signals are sent to the braking system.

Compact Brake-by-Wire Design Enables Efficiencies

The eBrake™ comes with a compact modular pedal arm that makes switching between LHD and RHD vehicles easy. This easy design change significantly reduces cost and design time.

Redundant Sensors to Maximize Vehicle Safety

The CTS eBrake™ leverages multiple sensor technologies to protect end users. By integrating both Hall effect and inductive position sensors, our system hosts multiple chip suppliers. This brake system design is in support of a dual ASIL D functional safety system at the vehicle level.

Modular Design Gives Engineers the Ultimate Flexibility

The modular approach allows for low-effort design changes, enabling cost-effectiveness and flexibility. The eBrake™ can be easily customized to ensure the best solution, accommodating various mounting configurations to maximize flexibility and provide engineering teams with greater design freedom.

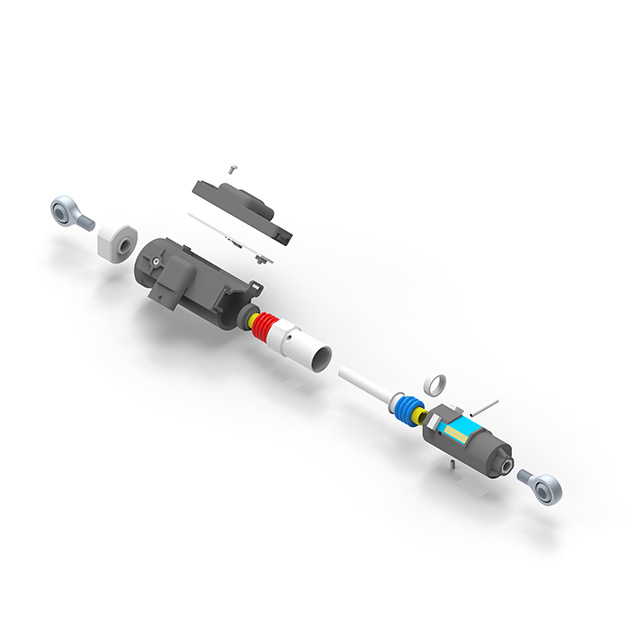

CTS ebrake emulator

Features
Applications

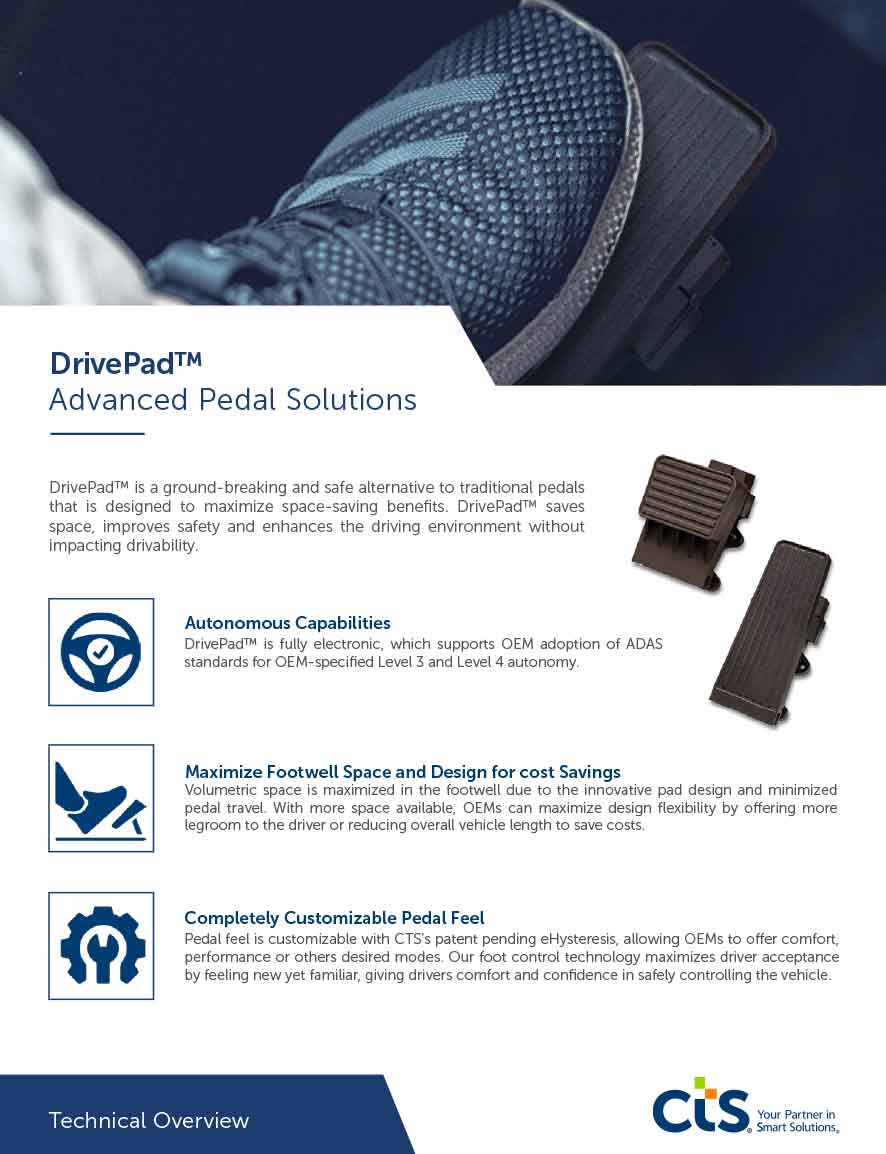

Technical Resources

Electric car application

Opens Up Engine Bay Space - Electronic brake control allows for more flexibility with part placement in the engine bay and commonality with RHD and LHD platforms.
Multiple Position Sensors - Increase end-user protection with complementary sensor technologies to ensure safety and reliability in emergency situations.
Traditional Brake Feel - Maximize customer confidence with a brake pedal that operates and feels familiar yet improved with a smooth and premium motion.
Modular Design - Eliminate complexity, ensure supply with a standardized construction process, and design flexibility for various mounting configurations.

The eBrake™ eliminates the need for mechanical braking linkage in existing vehicle architecture, while reducing system weight and improving energy efficiency. Because of our modular approach, solutions can be customized to ensure the best possible fit for a given vehicle. This design flexibility also allows for various mounting configurations.

Safety being at the forefront of our design process for automotive parts, this system utilizes multiple sensor technologies to protect end users. By integrating both Hall-effect and inductive position sensors, there is no single chip supplier, and a backup sensing method is always available. The eBrake™ also supports ASIL D systems, for manufacturers whose architecture includes both a primary and secondary braking system.

CTS has been creating innovative automotive pedal solutions for over four decades. As we continue to expand our support of EV technology, this new product is one more way for us to partner with leading vehicle manufacturers in their electrification journey.
