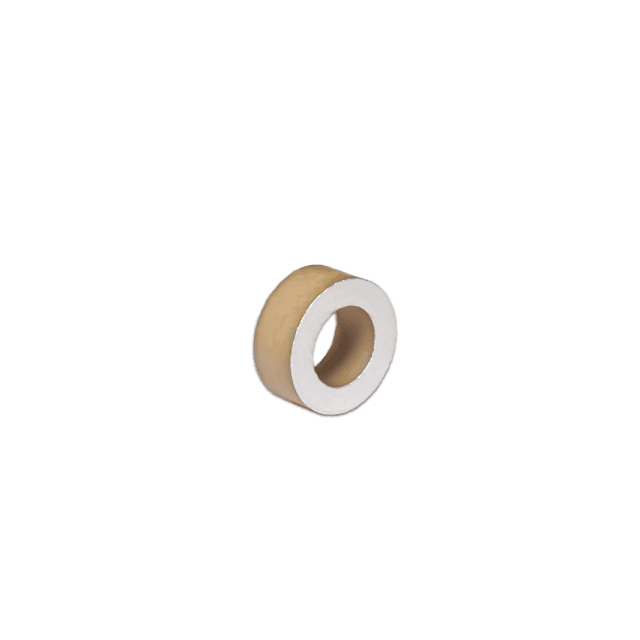

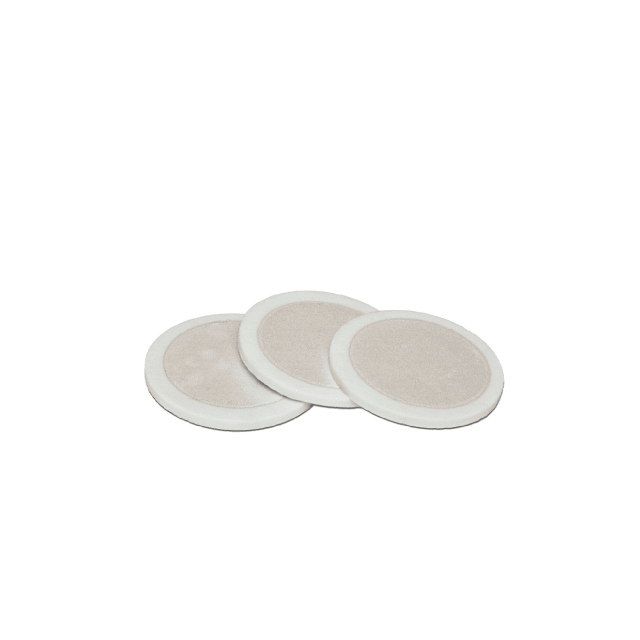

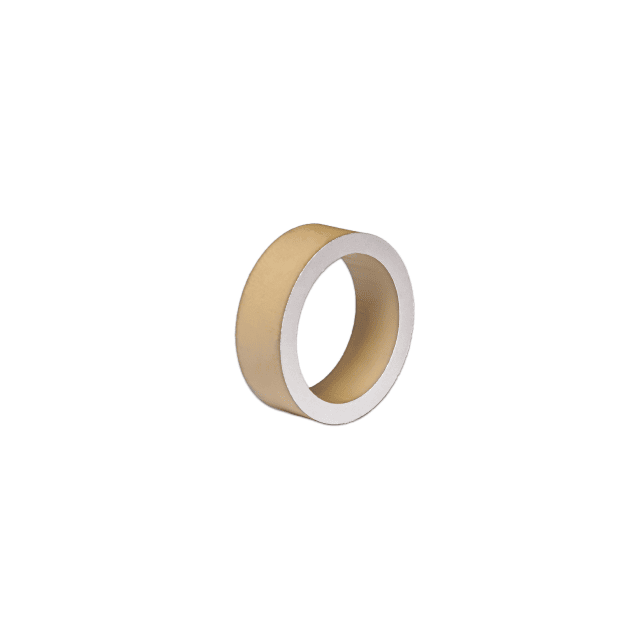

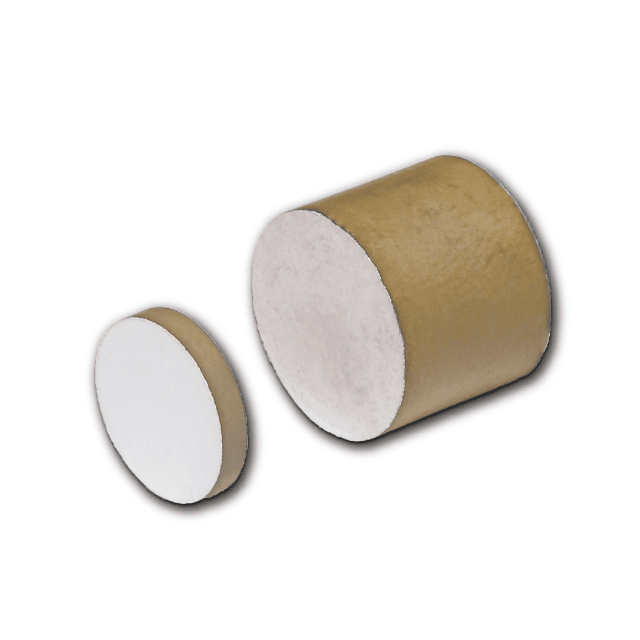

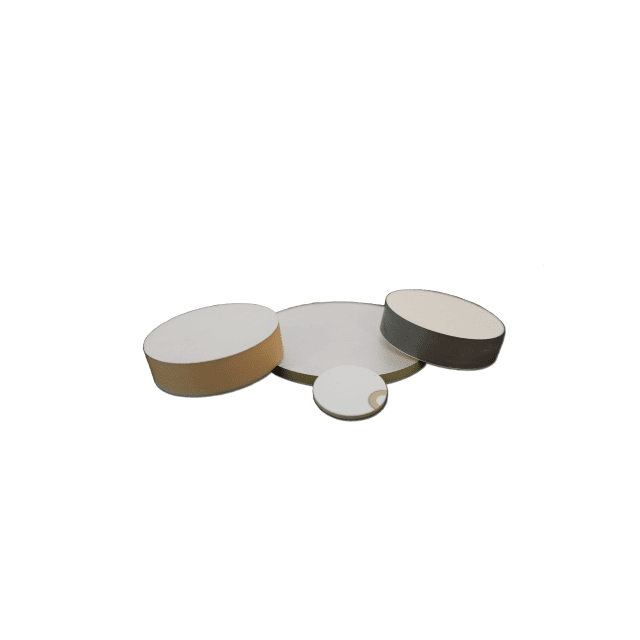

Discs, Rings and Rods

Piezoceramic discs, rings and rods from CTS are versatile components that can go in many applications. Their circular shape and the vibration modes it unlocks, make them particularly suited for ultrasonic sensors and power transducers. This geometry also grants them efficient energy coupling, improved resonance control and uniform stress distribution that contribute to longer operational life spans.



Series Resources

Contact Us

Features

  • High-Quality Product
  • Wide Range of Piezo Materials
  • Highly Customizable

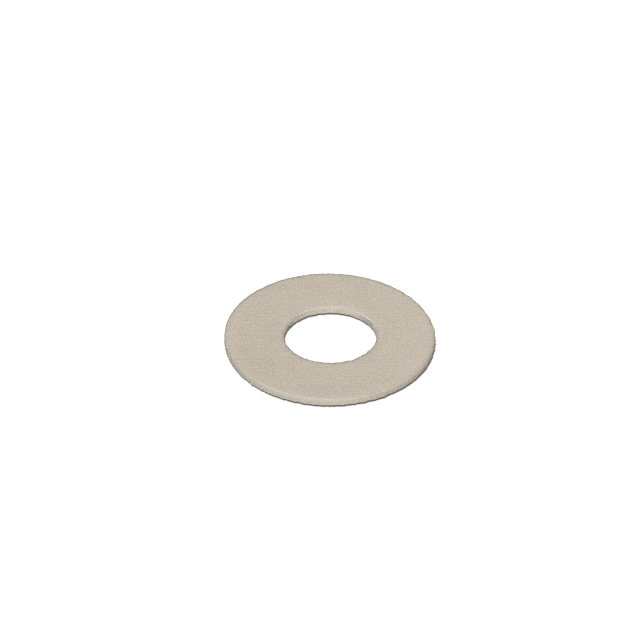

  • Lead-Free and High-Temperature Options

Applications

  • Flowmeters
  • Ultrasonic Welding
  • Dental Scalers
  • Fuze Generators
  • Ultrasonic Surgery
  • Sonar and Underwater Acoustics

Add-Ons and Custom Solutions

The majority of piezoelectric products from CTS are custom designed for specific applications with unique requirements.

Our capabilities for piezoceramic rings, discs and rods include:

  • Machined Features
  • Burn-In
  • Electrode Materials (Silver, Gold, Nickel-Vanadium etc.)
  • Special Tolerances
  • Inspection

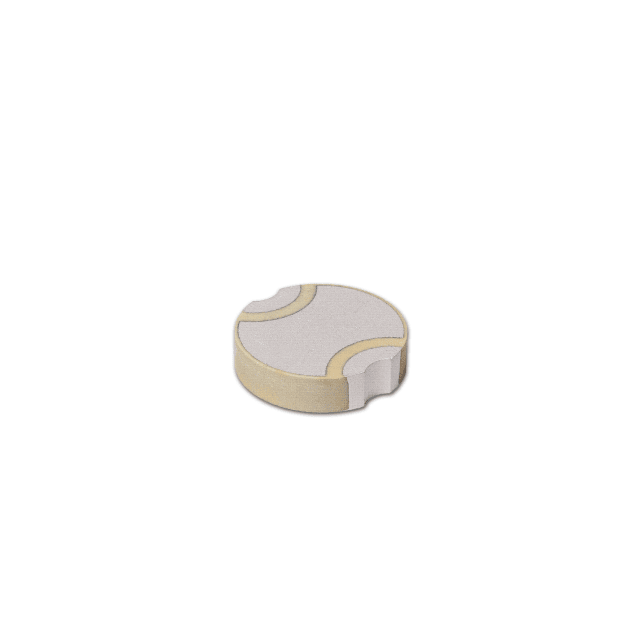

  • Electrode Designs (Wrap-Around, Concentric, Segmented etc.)

Common Shapes and Size Range

CTS piezoceramic discs, rings and rods can be designed to specific dimensional or frequency requirements within these ranges:
*Please note that not all combinations are available.

Technical Specifications
Outer Diameter 1 mm to 200 mm
Thickness 0.2 mm to 25 mm
Thickness (HD Materials) 0.076 mm to 25 mm
