Other Geometries

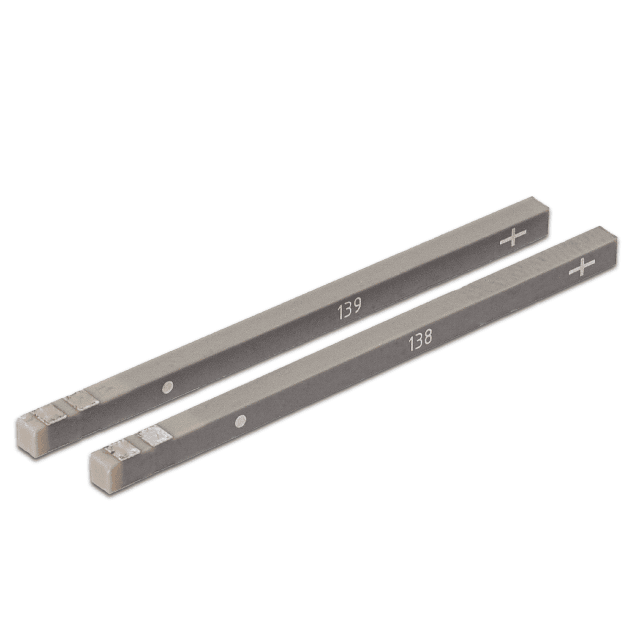

CTS' multilayer technology enables the manufacture of components with complex electrode layouts in order to include additional functions into a single component. Within the vast range of components that CTS has manufactured over the years, one can mention bending actuators with 4 active sections that can generate motion in 2 directions and components with independent actuator and sensor sections.



Series Resources

Features

  • Specific Geometries
  • Several Active Sections
  • Custom Electrode Layout

Applications

  • Optic Fiber Positioning
  • Level Measurement
  • Adaptive Optics
  • Triaxial Accelerometers
  • Viscosity Measurement

Add-Ons and Custom Solutions

Our multilayer products can be fully customized in terms of material, electrode layout, shape and dimensions to enable innovative functions. Contact us to enquire about our capabilities targeting your specific application.

Common Shapes and Size Ranges

The products can be designed to specific dimensional or frequency requirements within our capabilities.

Please note that not all combinations are possible.

Technical Specifications
Length 0.5 to 75 mm
Width 0.5 to 75 mm
Thickness 0.3 to 2 mm
