Multilayer - Plate and Ring Benders

Plate and Ring Benders

Piezoelectric multilayer plate and ring benders are designed to take advantage of the unique bending deformation mode. This deformation allows the plate and ring benders to generate greater displacements than linear piezoelectric elements of the same size in exchange for lower force capability.

Reach out to us with any questions.
We're happy to help.

Contact Us

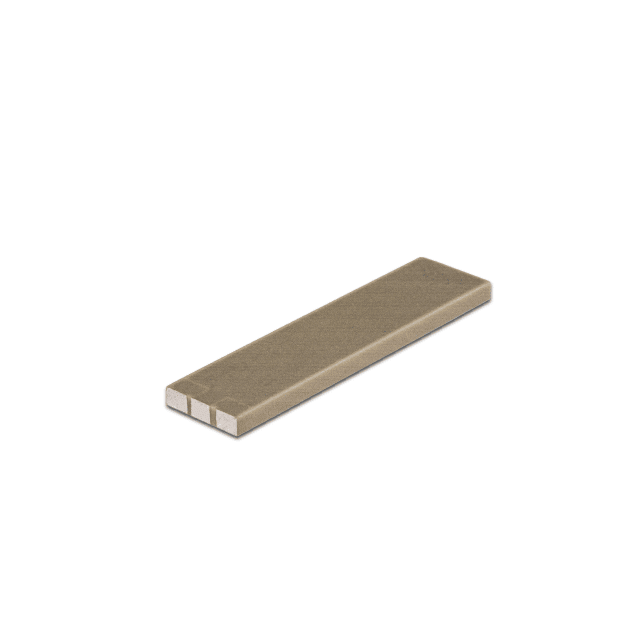

CTS Piezoceramic Multilayer Plate Bender 1.png

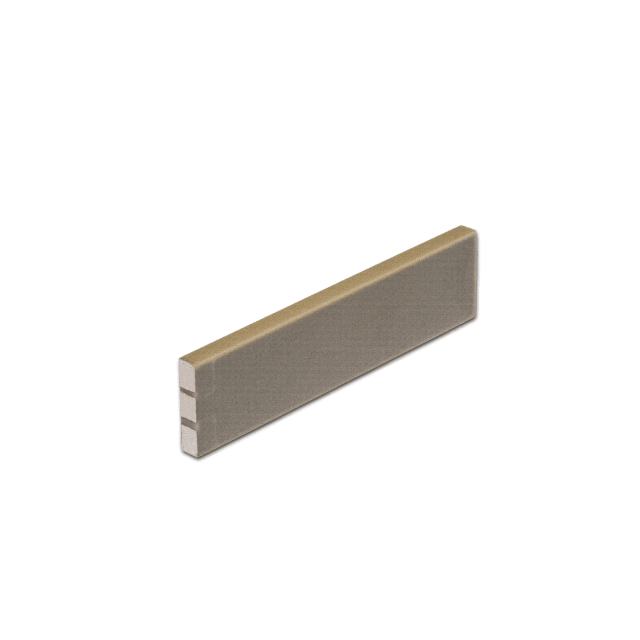

CTS Piezoceramic Multilayer Plate Bender 2.png

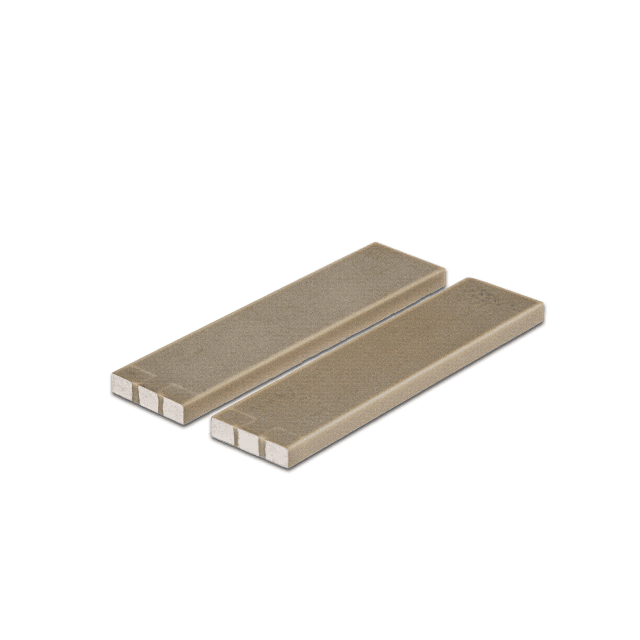

CTS Piezoceramic Multilayer Plate Benders 1.png

CTS Piezoceramic Multilayer Plate Benders 2.png

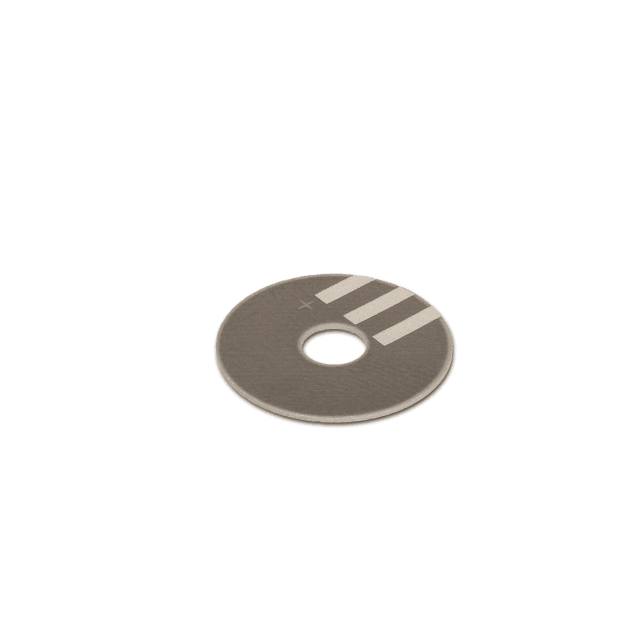

CTS Piezoceramic Multilayer Ring Bender 1.png

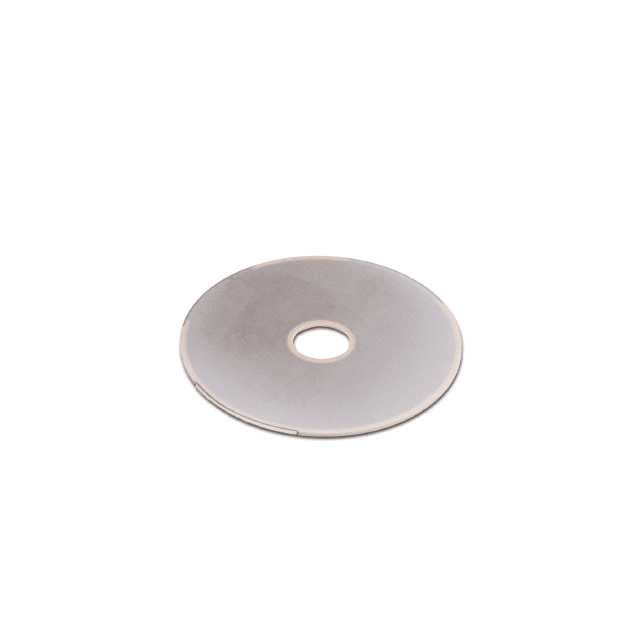

CTS Piezoceramic Multilayer Ring Bender 2.png

Features
Applications
Related Products
Technical Resources

Industrial pipeline with valves

Unique Bending Mode
High Displacement Relative to Size
Small Package
Low Power Requirement
Intermediate Stiffness

Optical Communication
Haptic Feedback
Dispensing
Valves

Please wait while we gather your results.

Piezoelectric Bimorph from CTS Corporation on white background

Multilayer - Bimorphs and Assemblies

Piezoelectric bimorphs take advantage of the bending/flexing mode, functioning as actuators in e.g., audio applications or as sensors in accelerometers and vortex flow meters.

Round piezoceramic assembly from CTS Corporation

Piezoceramic Stacks and Assemblies

Customized stacks and assemblies for unique application designs and requirements.

CTS Bulk Piezoceramic Plates in different sizes

Piezoceramic Plates, Wafers, Bars and Wedges

Rectuangular components, customizable in terms of size and frequency. The simple shape makes for easy system integration and broad applicability.

Please wait while we gather your results.

Results Updated, 132 Results.

Skip to Filters

Series	Geometry	Blocking Force - Each Side (N)	Capacitance - Each Side (nF)	Free Stroke - Each Side (μm)	Length / Outside Diameter (mm)	Height (mm)	Width / Inside Diameter (mm)	Voltage (V)	Data Sheet	Tech Drawings
NAC2221	Plate	1.5	105	210	21	0.7	7.8	100	Data Sheet	Tech Drawings
NAC2222	Plate	5.5	220	140	21	1.3	7.8	100	Data Sheet	Tech Drawings
NAC2223	Plate	10.4	330	95	21	1.8	7.8	100	Data Sheet	Tech Drawings
NAC2224	Plate	0.92	170	530	32	0.7	7.8	100	Data Sheet	Tech Drawings
NAC2225	Plate	3.4	350	365	32	1.3	7.8	100	Data Sheet	Tech Drawings
NAC2226	Plate	6.2	520	250	32	1.8	7.8	100	Data Sheet	Tech Drawings
NAC2227	Plate	0.58	280	1490	50	0.7	7.8	100	Data Sheet	Tech Drawings
NAC2228	Plate	2.1	560	1000	50	1.3	7.8	100	Data Sheet	Tech Drawings
NAC2229	Plate	4.0	860	700	50	1.8	7.8	100	Data Sheet	Tech Drawings
NAC2322	Ring	24.2	410	28.8	20	1.25	4	100	Data Sheet	Tech Drawings
NAC2323	Ring	26.8	620	22	20	1.8	4	100	Data Sheet	Tech Drawings
NAC2324	Ring	13.6	470	112	30	0.7	6	100	Data Sheet	Tech Drawings
NAC2325	Ring	35.0	980	78	30	1.25	6	100	Data Sheet	Tech Drawings
NAC2327	Ring	12.7	820	198	40	0.7	8	100	Data Sheet	Tech Drawings
NAC2328	Ring	41.4	1800	150	40	1.25	8	100	Data Sheet	Tech Drawings
