Multilayer - Plate and Ring Actuators and Stacks

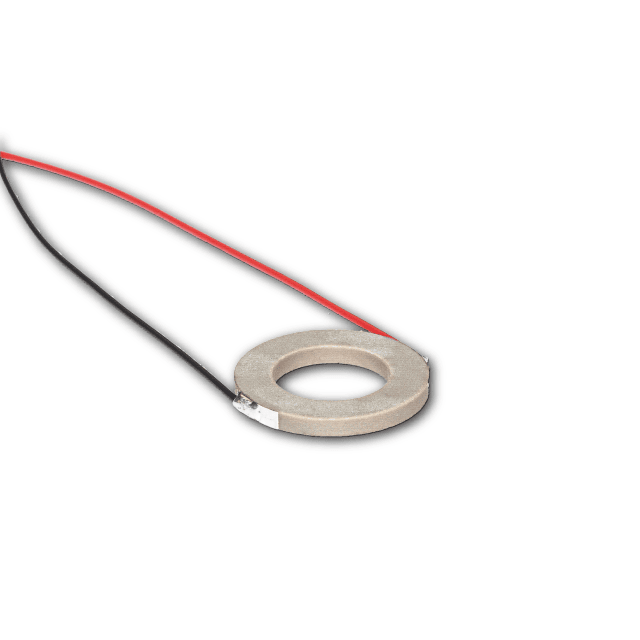

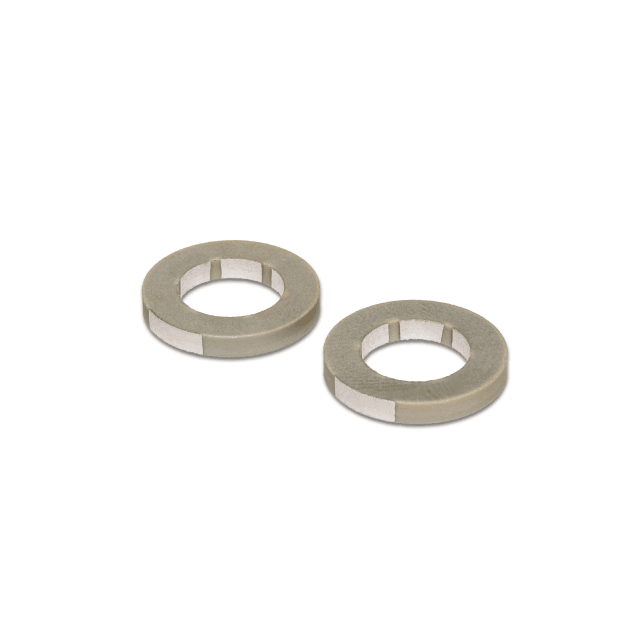

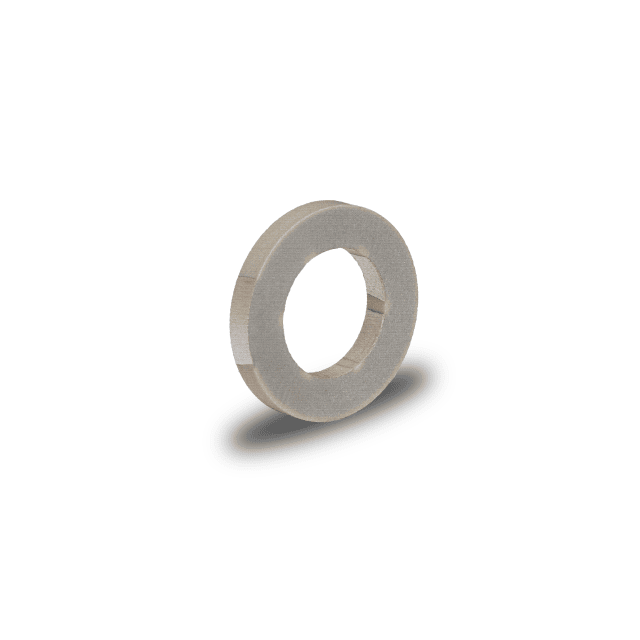

Piezoelectric Multilayer Ring Actuators from CTS Corporation

Main Content

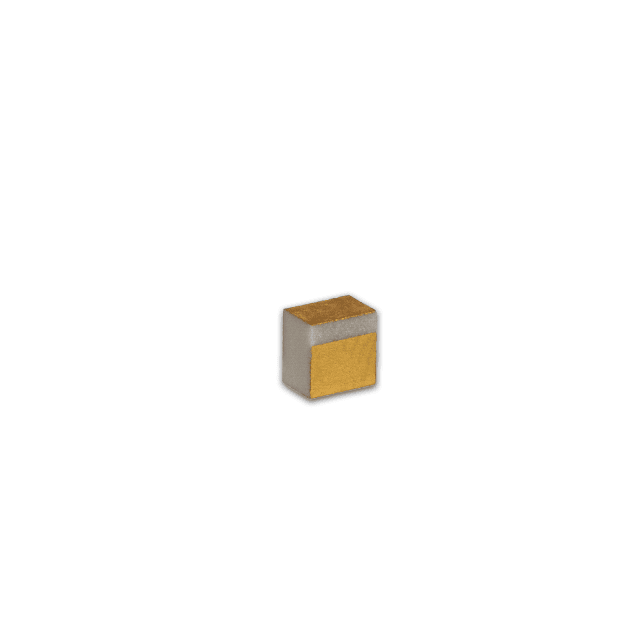

Plate and Ring Actuators and Stacks

Linear plate and ring actuators from CTS offer the unique combination of high force generation and low operating voltage. With their high stiffness leading to short response times (<1ms), these multilayer products are capable of fine movements and high-resolution positioning. Plate and ring actuators can also be stacked to achieve certain heights and strokes.



Reach out to us with any questions.
We're happy to help.

Contact Us



  • Features
  • Applications
  • Related Products
  • Technical Resources

CTS Piezoelectric Multilayer Plate and Ring Actuators and Stacks for Micropositioning

  • Low Operating Voltage
  • High Force Generation
  • High Stiffness for Short Response Time
  • Precise Motion

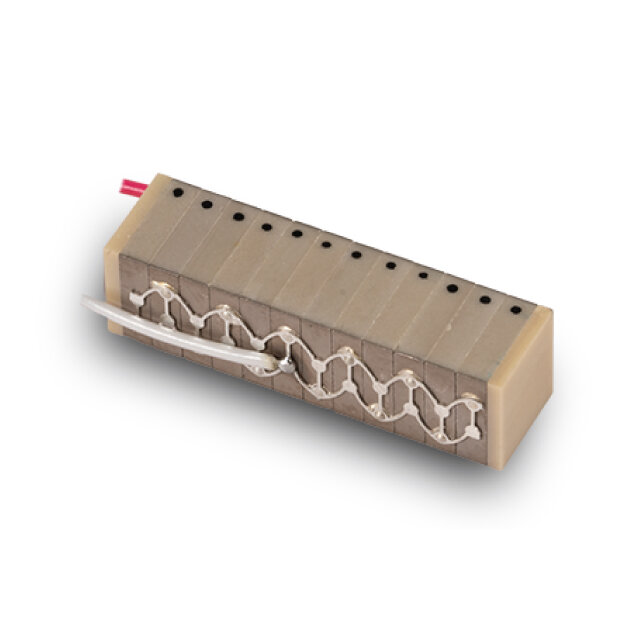

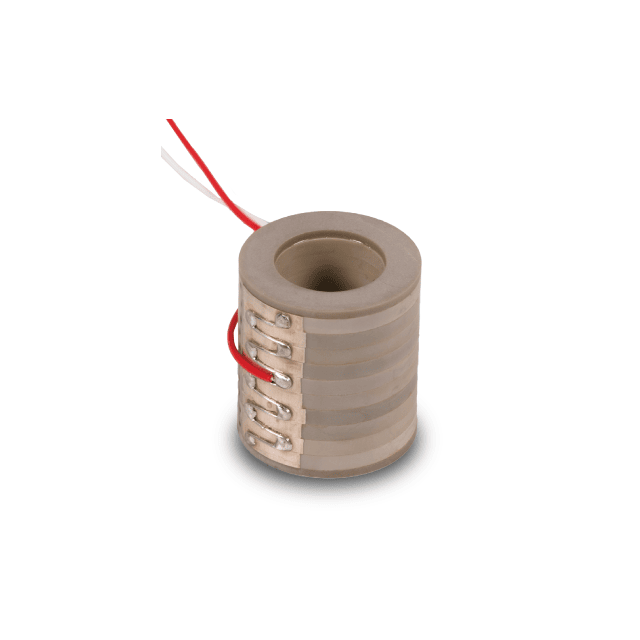

  • Stacking for Desired Heights and Strokes
  • Micro- and Nanopositioning
  • Active Vibration Control
  • Laser Tuning
  • Wire Bonding
  • Valves
  • Shaker
Please wait while we gather your results.
CTS Bulk Piezoceramic Plates in different sizes

Piezoceramic Plates, Wafers, Bars and Wedges

Rectuangular components, customizable in terms of size and frequency. The simple shape makes for easy system integration and broad applicability.

Piezoceramic Rings from CTS Corporation

Piezoceramic Discs, Rings and Rods

The radial symmetry of these components makes for very efficient energy coupling and provides uniform stress distribution. Often used in sonars, flowmeters and high-power ultrasonics.

Thin Piezoelectric Single Crystal Plates from CTS Corporation on white background

Single Crystal Plates, Wafers and Bars

Commonly employed in medical ultrasound imaging, single crystal plates are versatile and reliable components that offer even stress distribution and accurate frequency control.

Piezoelectric Single Crystal Ring from CTS Corporation on white background

Single Crystal Discs, Rings and Rods

With high electromechanical coupling, these single crystal components are ideal for underwater active sonar applications.

Round piezoceramic assembly from CTS Corporation

Piezoceramic Stacks and Assemblies

Customized stacks and assemblies for unique application designs and requirements.

CTS Multilayer High-Temperature Stack on White Background

Multilayer - High-Temperature Stacks

Multilayer stacks with a wide temperature range. They excel at high-frequency operation and in harsh environments where high temperatures will occur.
