Non-Intrusive AC & DC Measurements

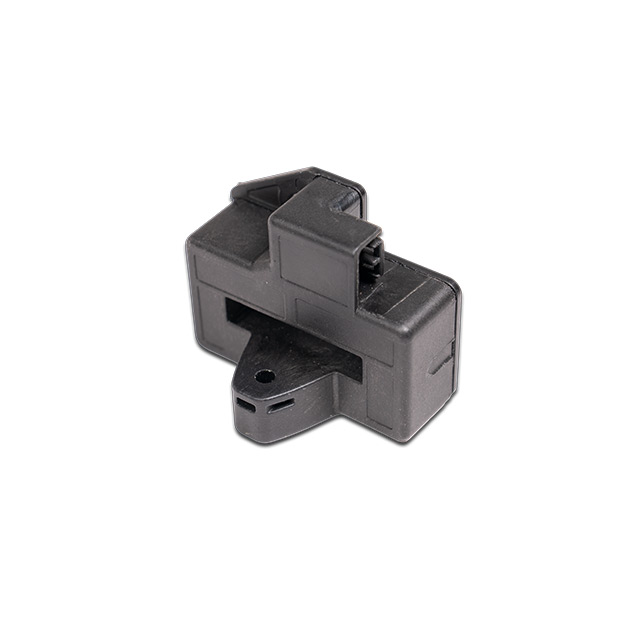

The series CTS-CS-BAX-20 is a current sensing module from CTS Corporation, specifically designed for integration into electrical systems based on busbars. Utilizing Hall-effect measurements, this busbar mount current sensor will provide highly accurate and non-intrusive readings of both AC and DC currents up to 1500 A. The series CTS-CS-BAX-20 is available in four off-the-shelf versions, but can be customized to unique specifications as well.


The series 229 pushbutton switch from CTS CorporationBusbars are used far and wide in all manner of electrical systems. Essentially serving as a central hub for multiple electrical connections, busbars offer advantages such as low electrical losses, high power density to size ratio design simplicity and easy installation and maintenance.

Having an integral role in countless systems, distributing power from a central source such as a generator or transformer to multiple circuits, busbars should always be vigilantly monitored. Optimized current flow through these conductors will translate to an equally optimized performance of all sub-systems connected to them. And at the same time, sub-optimal performance at the busbar level will cascade throughout all adjacent circuits, potentially hampering multiple system functions severely.

To ensure proper operation of busbar systems in the mid-to-high current range, CTS is launching the series CTS-CS-BAX-20, a range of easily installable and highly accurate busbar mount current sensor modules.

CTS-CS-BAX-20 Busbar Mount Current Sensor - How Does It Work?

The series CTS-CS-BAX-20 busbar mount current sensor is an off-the-shelf solution from CTS Corporation, designed to improve the operation of electronic systems that utilize busbars. By closely and accurately monitoring the flow of current through the busbar, system performance can be optimized, and potential malfunctioning can be detected.

As an off-the-shelf option, the CTS-CS-BAX-20 is calibrated to one of four current ranges, up to 1500 A. The full sensor module consists of an open loop Hall-effect sensor, encased in soft ferromagnetic shielding with high permeability to absorb magnetic fields and protect sensing accuracy.

Non-intrusive, galvanically isolated and small of size, the busbar mount current sensor is easy to install and will immediately provide highly accurate readings of both AC and DC currents. It also features excellent output linearity as well as low thermal offset and sensitivity drift, allowing it to operate as intended across a wide temperature spectrum. The CTS-CS-BAX-20 is easily assembled and mass produced thanks to the modular design approach that also grants customers the choice between various preset building blocks. This ensures that our lead times remain as short as possible without diminishing the design flexibility and broad applicability of the product.

Series CTS-CS-BAX-20 Busbar Mount Current Sensor
Parameter CTS-CS-BAX-20-0250-H CTS-CS-BAX-20-0500-H CTS-CS-BAX-20-1000-H CTS-CS-BAX-20-1500-H
Opening SIze (WxH) 20x6 mm 20x6 mm 20x6 mm 20x6 mm
Current Range 250 APK 500 APK 1000 APK 1500 APK
Sensitivity (Typical) 8.00 mV/A 4.00 mV/A 2.00 mV/A 1.33 mV/A
Operating Temperature -40°C to 125°C -40°C to 125°C -40°C to 125°C -40°C to 125°C
Linearity Error 1%IP 1%IP 1%IP 1%IP

Busbar Mount Current Sensor Product Page

Ideal Applications for the CTS-CS-BAX-20 Busbar Mount Current Sensor

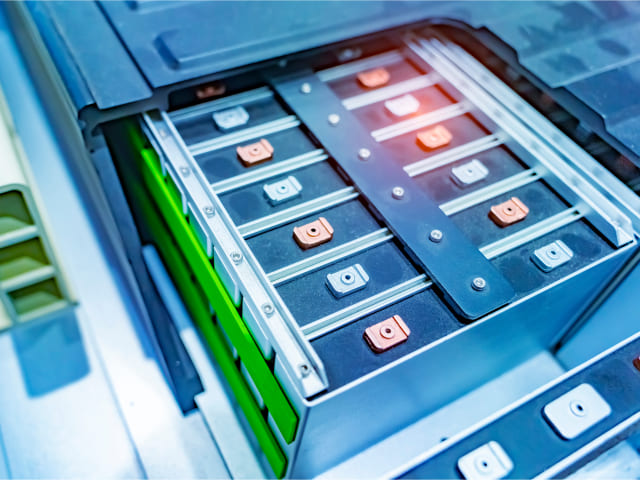

EV battery energy storage systemElectric Vehicles (EVs) and Battery Energy Storage Systems (BESS)

Current monitoring in EVs and BESS is essential for ensuring safety, efficiency, and performance. Busbars serve as the primary power distribution solution in these applications due to their high current-carrying capacity, compact design, and thermal efficiency. Integrating current sensors directly onto busbars enables realtime monitoring of power flow, helping to detect faults, prevent overheating, and optimize energy usage. In EVs, busbar-based current monitoring ensures battery pack safety, protects against short circuits, and enhances fast-charging capabilities. In BESS, it enables load balancing, prevents energy losses, and improves overall system reliability. Compared to traditional cable-based monitoring, busbars provide lower resistance, reduced heat generation and easier scalability. In automotive traction inverters, it delivers real-time monitoring of high‐voltage power stages, boosting inverter efficiency for higher power density and longer EV range.

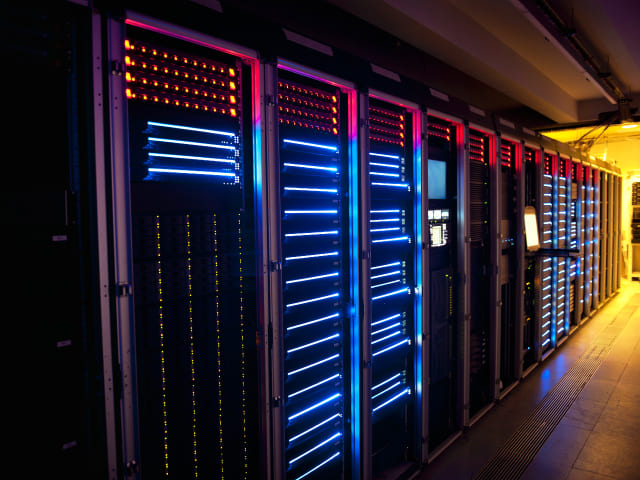

Data center serverData Centers and IT Infrastructure

Busbar-based power distribution is increasingly preferred over traditional cable systems due to its compact design, lower electrical losses and scalability. Integrating current sensors directly onto busbars enables realtime power tracking, helping to prevent overloads, optimize energy consumption and improve uptime. By monitoring current flow, data centers can enhance power usage effectiveness, detect faults before failures occur and reduce costs. Busbars also provide better heat dissipation, reducing the risk of hotspots in high-density server environments. In addition, busbar-based monitoring allows for easier expansion, modular plug-in connections and simplified maintenance. As data centers grow to meet increasing cloud and AI demands, efficient current monitoring on busbars is essential for maximizing performance, sustainability and security.



Solar panelsRenewable Energy (Solar and Wind Power Systems)

In renewable energy power systems, such as solar farms, wind energy and battery storage, busbar-based power distribution plays a crucial role in ensuring efficient and reliable energy flow. Integrating current sensors directly onto busbars enables real-time monitoring of power generation, storage, and distribution, helping to detect faults, prevent overloads, and optimize system performance. In solar and wind power systems, current monitoring ensures maximum power output, grid stability and fault detection, preventing downtime and equipment failures. The scalability and modularity of busbar-based monitoring make it ideal for expanding renewable energy infrastructure, supporting the transition to a more sustainable and resilient power grid.





Video Introduction to the Series 229

Product Inquiries

Available for direct purchase, the busbar mount current sensor can be acquired via the contact formular on www.ctscorp.com and, in the near future, also through our global network of distributors.

Inquire Here

Distributor Stock Check
