Busbar Mount Current Sensors Now Available

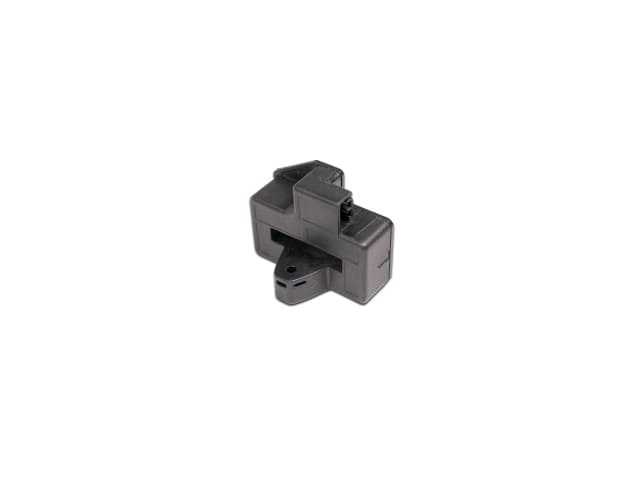

The CTS-CS-BAX-20 busbar mount current sensor from CTS Corporation

Main Content

CTS Corporation (NYSE: CTS) is introducing the series CTS-CS-BAX-20 busbar mount current sensor as an off-the-shelf current sensing solution for busbar systems in the mid-to-high current range.

The CTS-CS-BAX-20 will provide non-intrusive measurements of AC and DC currents with excellent accuracy and linearity. It can be calibrated to one of four current ranges, but custom configurations can be accomodated as well upon request.

Specifically designed for busbar system integration, the CTS-CS-BAX-20 offers seamless installation and easy maintenance thanks to the non-contacting, Hall-effect sensing method. Available for direct purchase, the busbar mount current sensor can be acquired via the contact formular on www.ctscorp.com and, at a later date, through our global network of distributors.

Inquire Here

Distributor Stock Check



Applications Examples

  • Inverters
  • Data Centers
  • Production Lines
  • DC Links
  • Electric Vehicles
  • Renewable Energy
  • Switchboards
  • Battery Energy Storage Systems
  • Power Distribution
  • Motor Control Centers
  • DC/DC Converters

Product Features

  • Designed for Busbar System Integration
  • Non-Intrusive, Hall-Effect Sensing
  • Low Hysteresis, High Permeability
  • Small Size and Lightweight
  • AC and DC Current Measurements
  • Four Current Range Calibrations: 250A, 500A, 1000A, 1500A
  • Excellent Accuracy and Linearity
  • Wide Temperature Range

Busbar Mount Current Sensor Product Page
