Hall-Shunt Module
HSM-800 Hall-Shunt Module
The HSM-800 is a repetitive current sensor module that combines precise Cu-Mn shunt-based current measurement and a fully redundant, galvanically isolated Hall sensor module. Safety-relevant applications with non-heterogeneous redundancy supporting ASIL C and D standards. Applications include monitoring systems BMS, junction box, batter disconnect unit BDU, present in PHEV, HEV and EV.
Series Resources
- Data Sheet
- HSM-800 Hall-Shunt Module
- Reach Statement
What is a Hall-Shunt Module?
A Hall-shunt module is a device that combines a Hall current sensor and a shunt current sensor for redundant current sensing. These modules are typically developed to ensure a specific current is being maintained making them great options for automotive and industrial machinery.
The HSM-800 module provides highly accurate, redundant, and reliable current measurements by using Cu-Mn shunt-based current measurement and a fully redundant, galvanically isolated Hall sensor. Integrating two distinct sensing types within a single module reduces the likelihood of failure, making it more reliable and better suited for safety-critical applications. Additionally, the module is complemented with an ambient temperature sensor to determine the state-of-charge SOC, state-of-health SOH, and state-of-function SOF of modern battery-powered equipment.
How is CTS's current sensing module integrated?
The HSM-800 is mounted to a conductive material, such as a busbar, within a battery or electrical system. This module features the housing mounted on top of the busbar, or conductive material, containing the Hall sensor and connector. The optional temperature sensor is positioned adjacent to the housing, with the shunt connector wires secured along the side.
While the entire unit is typically housed on a busbar or similar equipment, the design is highly versatile and can be configured in various ways to suit a range of applications.

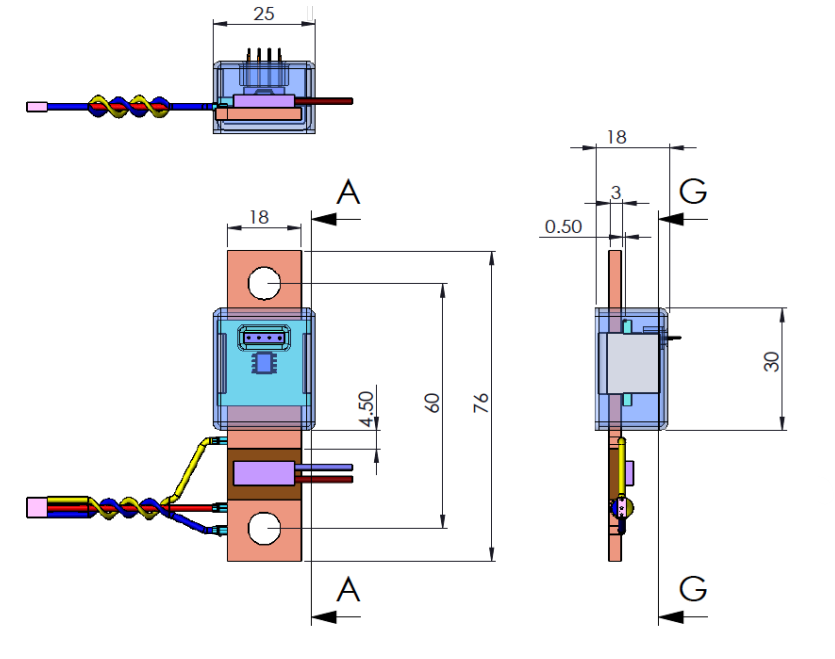

Dimensions
Primary Monitoring Specifications
| Parameters | Values |
|---|---|
| Peak Input Current Range | ±800 A |
| Continuous Input Current | ±380 A |
| Cu-Mn Shunt Resistance | 100 µOhm |
| Hall Sensor Sensitivity | 2.50 mV/A |
| Operating Temperature Range | −50° to +150°C |
| PT100 Temperature Sensor | 100 Ohm |

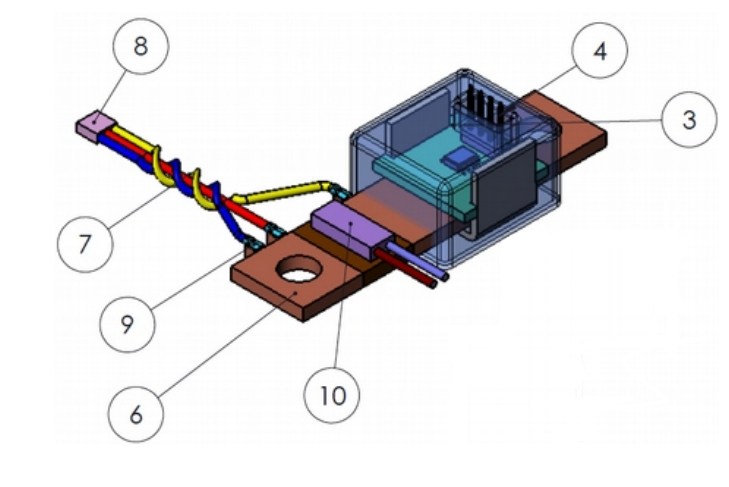

Module Design
| Descriptions | |
|---|---|
| Housing | 3 |
| Hall sensor connector | 4 |
| Copper busbar with shunt | 6 |
| Shunt wires | 7 |
| Shunt connector | 8 |
| Shunt to wire joint | 9 |
| Temperature Sensor | 10 |
Standard Product or Custom Solutions
With both off-the-shelf and customized solutions, we meet a wide range of performance needs based on our established modular design. These sensors are solutions grat options for high-amperage applications. We can design the module with customized packaging and mounting options or provide
Designed using Hall-effect and shunt-based technology, all our sensors provide a consistent, high-performance streamlined solution. Regardless of your application or housing requirements, our engineers can build a sensor from the ground up or alter an exsisting sensor to your concise specifications, guaranteeing it will fit your requirements.
- Features
- Applications
- Technical Resources
Features
- Multisensor system: DC and AC Current (Hall, shunt, CT), voltage, temperature
- WiFi interface with cloud connectivity
- Transceiver extensible (LoRa, ZigBee, CAN)
- Galvanically isolated split-core design
- Contactless Melexis 91208 Hall sensor
Applications
- Internet of Things (IoT)
- Internet of Everything (IoE)
- Monitoring of battery driven equipment
- Workplace safety
- Factory monitoring
- Energy efficiency / cost monitoring
- Solar power
- Prototyping, development, test platform
