Commercial Rotary Potentiometers

Information

Commercial Rotary Potentiometers

CTS continually expands its rotary potentiometer product line with reliable and innovative products to serve customers on a global basis. Constructed with carbon composition elements, solder lugs or PC pins, package sizes range from 9 mm to 24 mm, with linear or audio output taper options available. Rotational Life offerings range from 5,000 cycles to 500,000 cycles, along with tandem, concentric shaft and switch options depending on the model. Manufacturing excellence and continuous improvement enables CTS to provide a broad product line of commercial rotary potentiometers, custom solutions, and value-added options to meet the requirements of customer applications in Commercial Goods, Professional Audio, Professional Lighting and Medical markets.

Contact Us - Sales Inquiry

For Sales Inquiries   Contact Us







Scroll down to selector guide table to view Commercial Rotary Potentiometers product portfolio

Contact Us - Technical Inquiry

To Request Technical Information   Contact Us







Scroll down to selector guide table to view Commercial Rotary Potentiometers product portfolio.

Stock Check - CTS Distributors

To Check Product Availability   Click Here







Scroll down to selector guide table to view Commercial Rotary Potentiometers product portfolio.

Product Literature

Application Notes

Instrumentation

Audio Equipment



18VRG Product Flyer

Product Training



VR Series Panel Potentiometer

  • Search

    • Filter Products by Data

  • Element Type

  • Rotational Life [Cycles]

  • Tandem Option

  • Concentric Option

  • Switch Option

    • Display Columns
    SeriesElement TypeTerminal TypePackage Size [mm]Linear Resistance Range [Ohms]Audio Resistance Range [Ohms]Power [W]Rotational Torque [gf-cm]Rotational Life [Cycles]Operating Temperature Range [°C]Tandem OptionConcentric OptionSwitch OptionData SheetCAD FileRoHS
    C of C    		REACH
    Statement
    18VRGCarbon CompositionSolder Lugs1825k to 500k25k to 500k0.0520 to 30015000-10°C to +70°CYesData SheetCAD FilesRoHSREACH
    14VRCarbon CompositionPC pins145k to 500k5k to 500k0.0530 to 20015000-10°C to +70°CYesData SheetCAD FilesRoHSREACH
    12VRCarbon CompositionPC pins125k to 250k5k to 250k0.0510 to 10015000
    30000    		-10°C to +70°CYesData SheetCAD FilesRoHSREACH
    11VRCarbon CompositionPC pins115k to 500k5k to 500k0.0530 to 20015000-10°C to +70°CYesData SheetCAD FilesRoHSREACH
    09VRCarbon CompositionPC pins95k to 500k5k to 500k0.0510 to 805000-10°C to +70°CData SheetCAD FilesRoHSREACH
    450GCarbon CompositionSolder lug2425k to 1M1k to 1M0.2554 to 432
    36 to 144    		100000-10°C to +80°CData SheetCAD FilesRoHSREACH

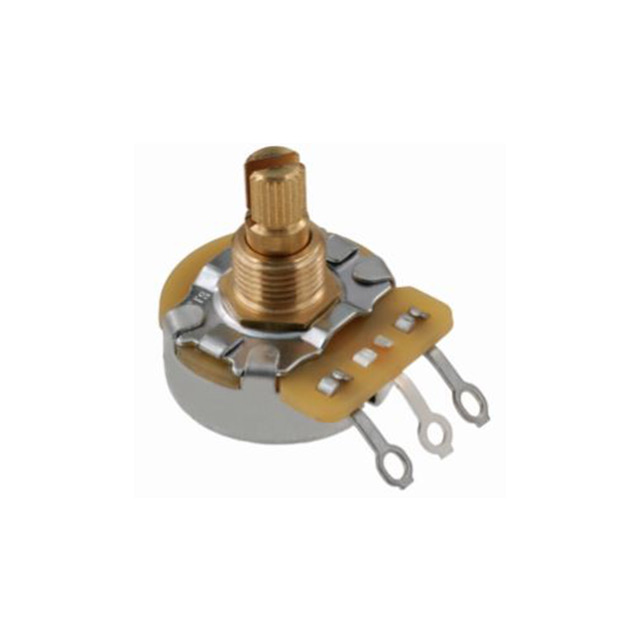

    450Carbon CompositionSolder lugs PC pins24500 to 10M1k to 1M0.50 [<100kΩ]
    0.33 [>100kΩ]    		54 to 43210000
    100000
    250000    		-10°C to +80°CYesYesYesData SheetCAD FilesRoHSREACH
    280Carbon CompositionSolder lugs PC pins18 x 21500 to 5M5k to 500k0.2536 to 21610000
    100000
    250000
    500000    		-10°C to +80°CYesYesData SheetCAD FilesRoHSREACH
    270Carbon CompositionSolder lugs PC pins16500 to 2M5k to 200k0.25 [<100kΩ]
    0.20 [>100kΩ]    		36 to 36010000-10°C to +70°CYesYesData SheetCAD FilesRoHSREACH
    251Carbon CompositionPC pins10 x 1110k to 200k0.013 to 30250000
    1000000    		-10°C to +70°CData SheetCAD FilesRoHSREACH
