Duplexers enable the transmission and reception of signals on the same frequency without them interfering with each other. This is done by isolating the transmitter from the receiver while still allowing them to share a common antenna. As such, duplexers are of critical importance to many means of two-way communication, including radios, mobile phones and base stations.

Our selection of duplexers comes with options for DL/UL passband and stopband range, attenuation, max. insertion loss, power and size. In addtion, our products feature a universal PCB footprint for easy board population.

Reach out to us with any questions.
We're happy to help.

Contact Us



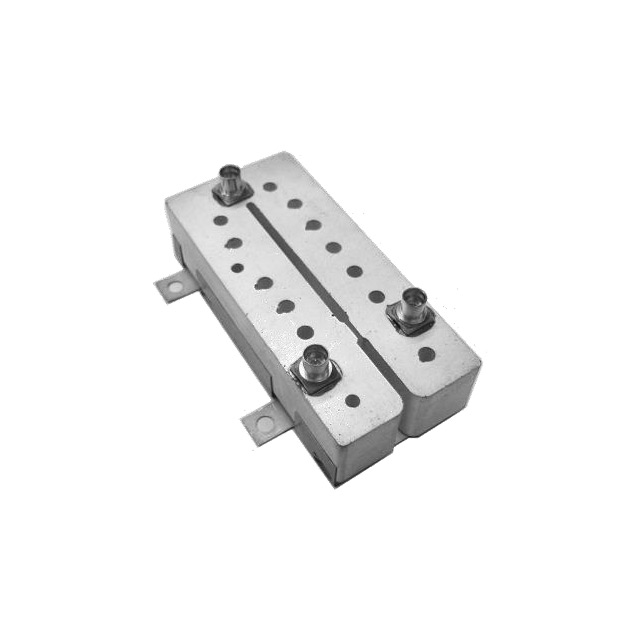

cts-rf-filters-duplexer-UMD007A-UMD002A-UMD003A-UMD008A-UMD020A-UMD159A-UMD028A-UMD001A.jpg

Features
Applications

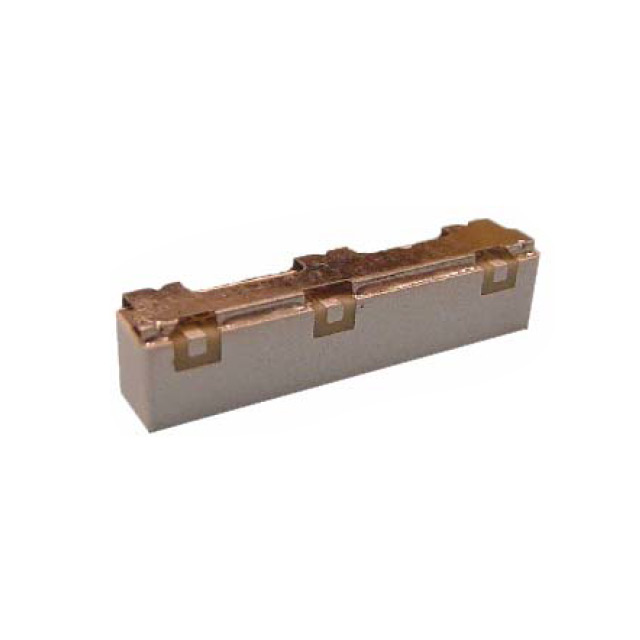

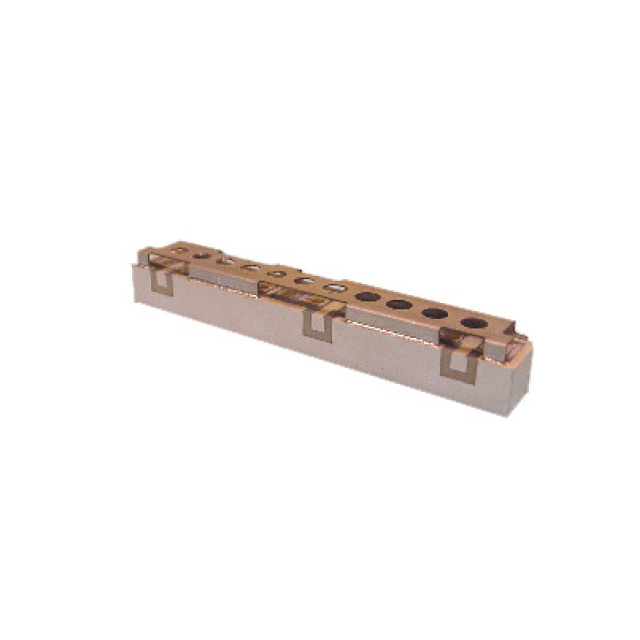

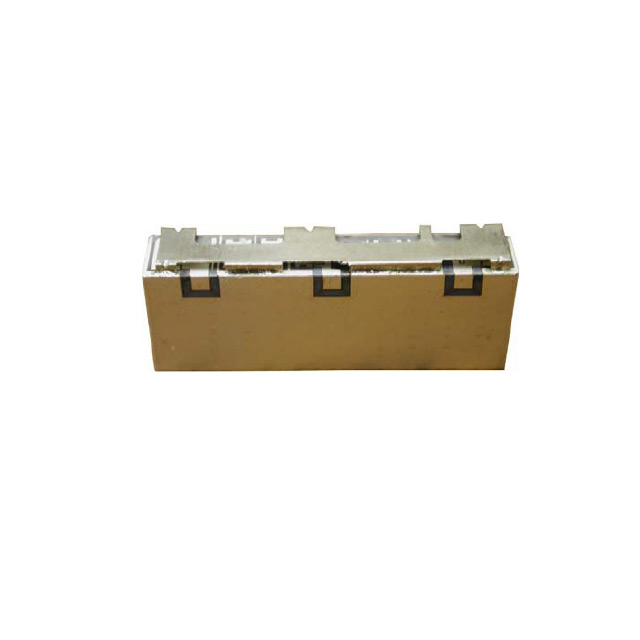

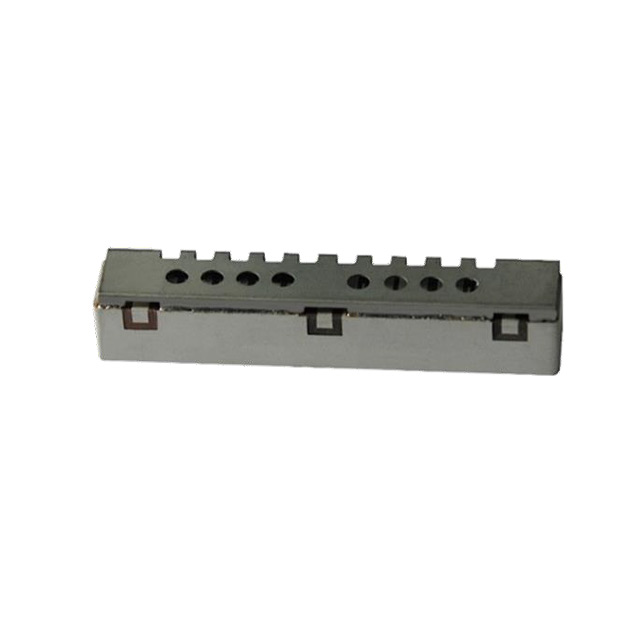

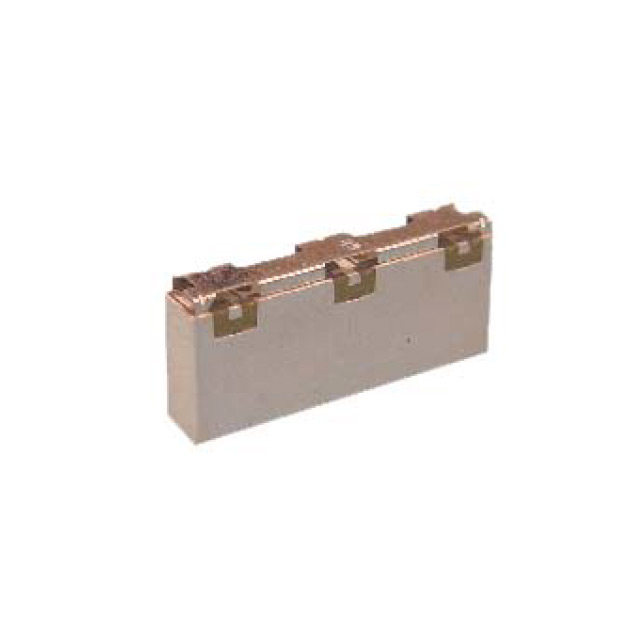

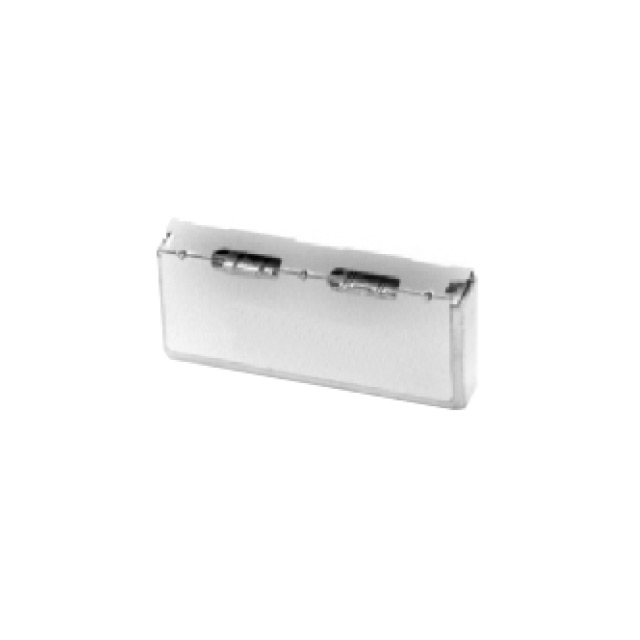

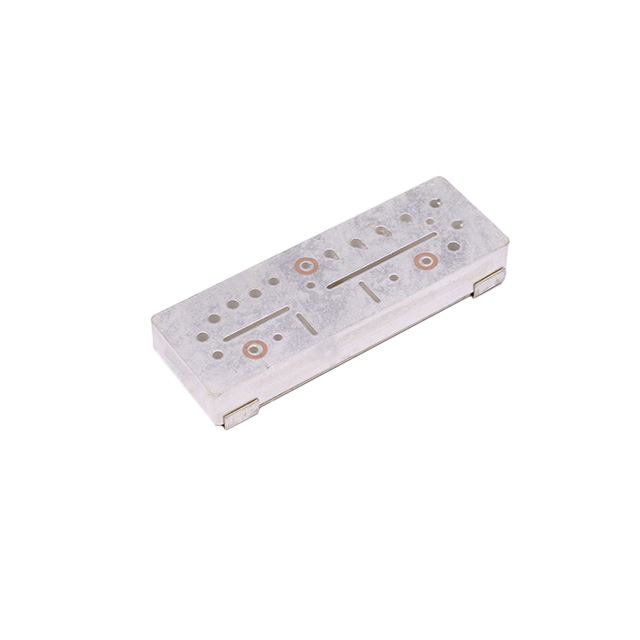

Popular Products
Technical Resources

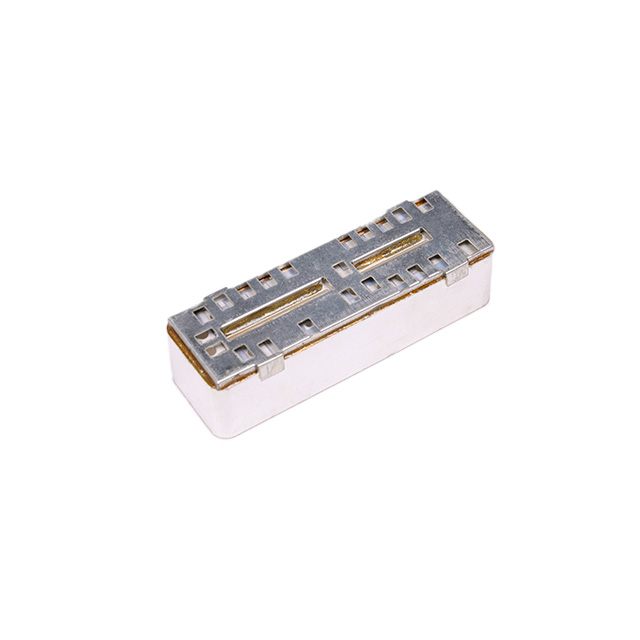

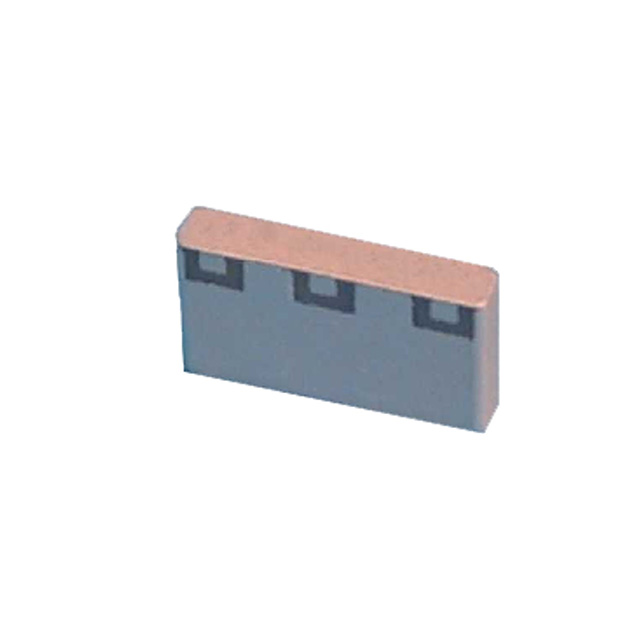

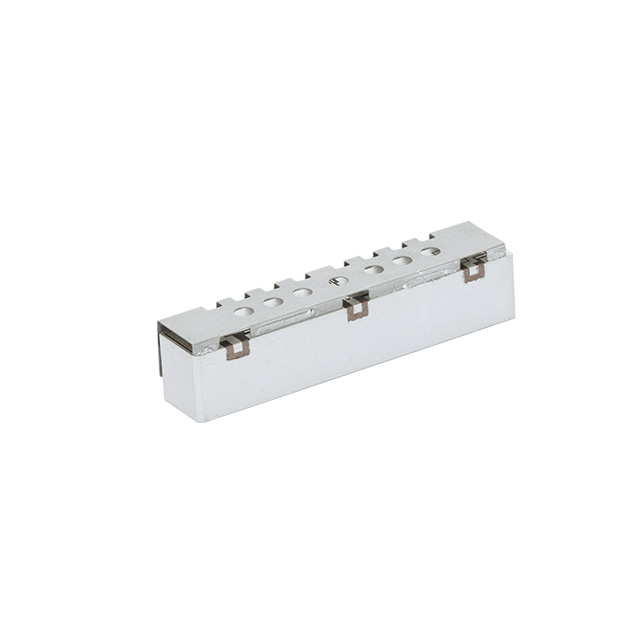

Three duplexer units from CTS Corporation

Reliable Surface-Mounted/Ceramic Cavity Waveguide Filters
Options for Passband, Stopband, Max. insertion loss, Size and Power
Rejection Performance upwards of 80dB and 200W of Peak Input Power Handling
Solutions Graded for Military/Aerospace Applications
Universal Footprint for PCB Layout Population without Modifications

Indoor and Outdoor Small Cells
Distributed Antenna Systems (DAS)
Active Antenna Systems (AAS)
Remote Radio Heads
Wireless Infrastructure Systems
